  Cebek Electronic Kits

Cebek 1-Channel 230VAC RF Receiver


Cebek TL-612
Specifications:
Reference TL-612
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 1
Relay Output SPDT 5A
Consumption mA
Power Supply 230VAC
Dimensions mm
Weight 180g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7565 >

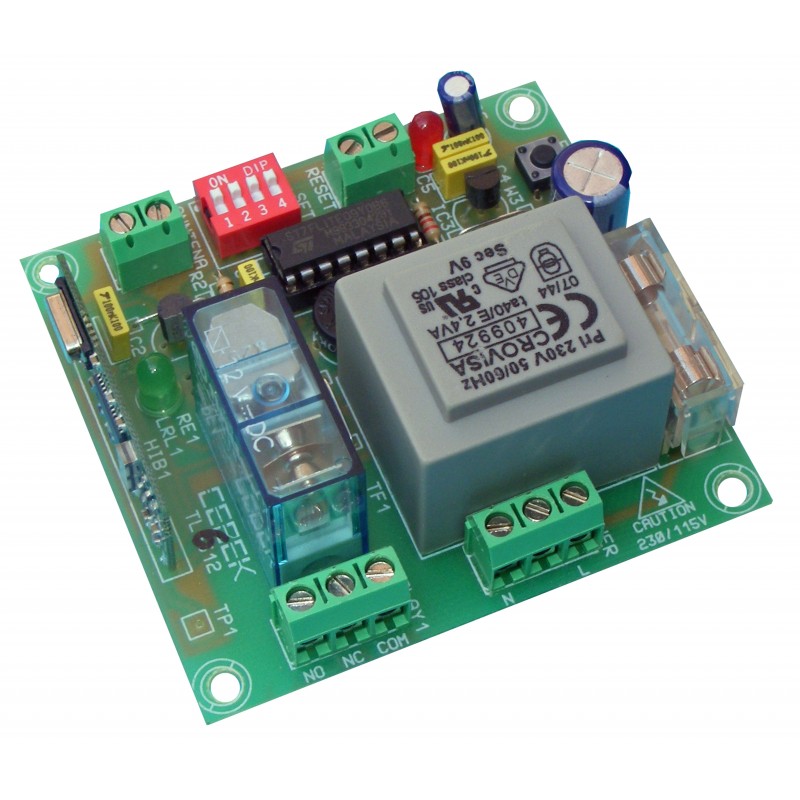

The Cebek TL-612 is a mains operated single channel RF remote control receiver with relay output. It will operate with any of the transmitters listed below. It verifies the security code you have selected (13,122 combinations) and operates the relay. The relay on the TL-612 can be configured with a momentary or latching action.
Will Operate with the following Transmitters
Single Channel (30m) Momentary Action Key Fob TL-300
Dual Channel (30m) Latching Action Key Fob TL-301
Single Channel (100m) Momentary Action Hand Held TL-321
Two Channel (100m) Momentary Action Hand Held TL-322
Single Channel (300m) Momentary Action Hand Held TL-323
Two Channel (300m) Momentary Action Hand Held TL-324
Two Channel (100m) Momentary Action No Housing TL-325
Two Channel (300m) Momentary Action No Housing TL-326
Four Channel (100m) Transmitter  Hand Held TL-420
Eight Channel (100m) Transmitter Hand Held TL-421
Sixteen Channel (100m) Transmitter Hand Held TL-428
Eight Channel (100m) Transmitter No Housing TL-429
Sixteen Channel (100m) Transmitter No Housing TL-432
Eight Channel (300m) Transmitter No Housing TL-439
Sixteen Channel (300m) Transmitter No Housing TL-442
Eight Channel (100m) Transmitter USB.TL-40

Related Products::
Power Supply FE-113
Antenna C-0509

Order Code   Each
TL-612 Cebek 1-Channel 230VAC RF Receiver (Momentary/Latching) 36.30
