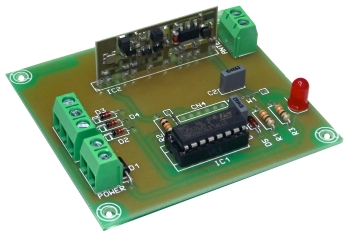

Cebek 2-Channel RF Transmitter


2-Channel RF Transmitter (300 metre range)
Specifications:
Reference TL-326
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 2
Range 300m
Consumption 50mA
Power Supply 12VDC
Dimensions 72 x 64 x 18mm
Weight 27g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-326 is a two channel 12Vdc transmitter for Group 3 Cebek RF remote control receivers. It uses a carrier frequency of 433.92MHz. Communication between transmitter and receiver is established via a data frame with a security code, matching transmitters and receivers that prevents the connection from any other RF equipment. Requires an antenna to emit with maximum power and efficiency, this must be installed before operating the remote control. You can use a rigid copper wire 1mmØ, connecting to the terminal marked antenna. For longer range antennas use Cebek C-0509 rigid aerial.
Will Operate with the following Receivers
Single Channel (12-24Vdc) Latching/Momentary TL-310
Dual Channel (230Vac) Latching/Momentary TL-311
Single Channel (230Vac) Latching/Momentary TL-612
Two Channel (230Vac) Latching/Momentary TL-613

Related Products::
Power Supply FE-103
Antenna C-0509

Order Code   Each
TL-326 Cebek 2-Channel RF Transmitter (Momentary)* 39.47
