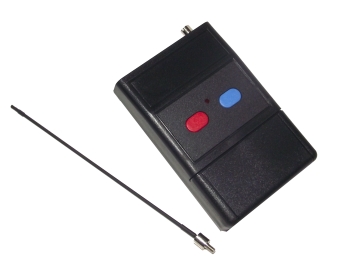

Cebek 2-Channel RF Transmitter


2-Channel RF Transmitter (300 metre range)
Specifications:
Reference TL-324
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 2
Range 300m
Consumption 5mA
Power Supply 12VDC 23A Battery
Dimensions 60 x 60 x 24mm
Weight 60g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-324 is a two channel transmitter with momentary switch action for Group 3 Cebek RF remote control receivers. It has a range of about 300m in an open space. It uses a carrier frequency of 433.92MHz. This transmitter uses an exclusive single identification code. Communication between transmitter and receiver is established via a data frame with a security code, matching transmitters and receivers that prevents the connection from any other RF equipment.
Will Operate with the following Receivers
Single Channel (12-24Vdc) Latching/Momentary TL-310
Single Channel (230Vac) Latching/Momentary TL-312
Two Channel (12-24Vdc) Latching/Momentary & Timed TL-601
Two Channel (230Vac) Latching/Momentary & Timed TL-602
Single Channel (230Vac) Latching/Momentary TL-612
Two Channel (230Vac) Latching/Momentary TL-613

Related Products::

Battery 23A

Order Code   Each
TL-324

Cebek 2-Channel RF Transmitter (Momentary)*

 40.20
