DIN Rail Module Box

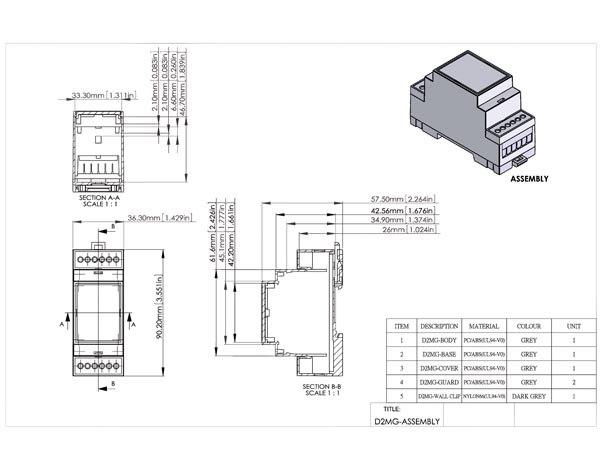

2MG DIN Rail Module Box Line Drawing
Specifications:
Material ABS
Colour Dark Grey
DIN Rail Profile EN60715
DIN Rail Size 2MG

Dimensions 36 x 90 x 57mm
Weight g
This DIN rail module box is designed to build in your own electronics, comes with clear and grey cover. It has easy installation thanks to snap fit construction. Provided with spare snap fit clip.
Order Code   Each
400-352 2MG DIN Rail Module Box 2.94

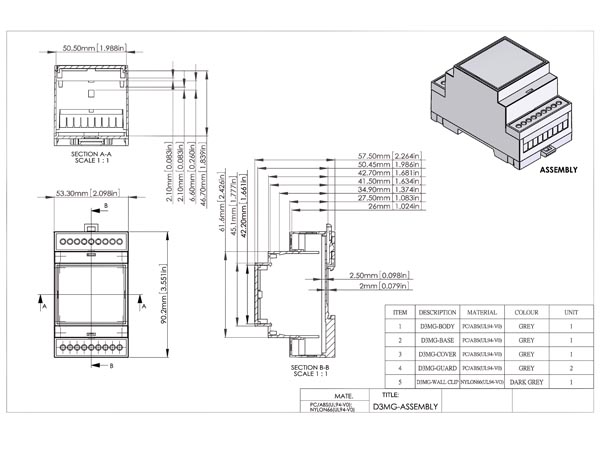

3MG DIN Rail Module Box Line Drawing
Specifications:
Material ABS
Colour Dark Grey
DIN Rail Profile EN60715
DIN Rail Size 3MG

Dimensions 53 x 90 x 57mm
Weight g
This DIN rail module box is designed to build in your own electronics, comes with clear and grey cover. It has easy installation thanks to snap fit construction. Provided with spare snap fit clip.
Order Code   Each
400-353 3MG DIN Rail Module Box 4.18

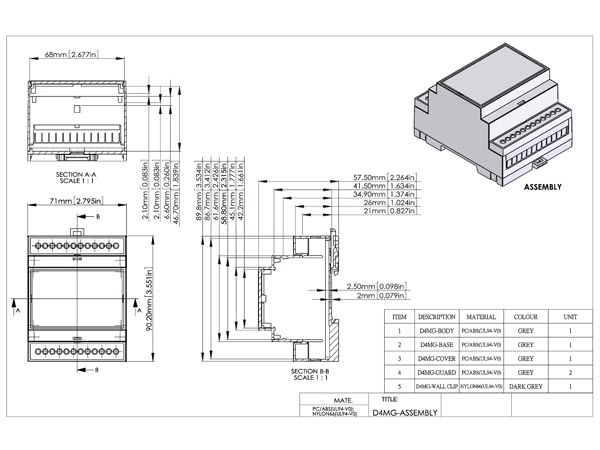

4MG DIN Rail Module Box Line Drawing
Specifications:
Material ABS
Colour Dark Grey
DIN Rail Profile EN60715
DIN Rail Size 4MG

Dimensions 71 x 90 x 57mm
Weight g
This DIN rail module box is designed to build in your own electronics, comes with clear and grey cover. It has easy installation thanks to snap fit construction. Provided with spare snap fit clip.
Order Code   Each
400-354 4MG DIN Rail Module Box 5.13

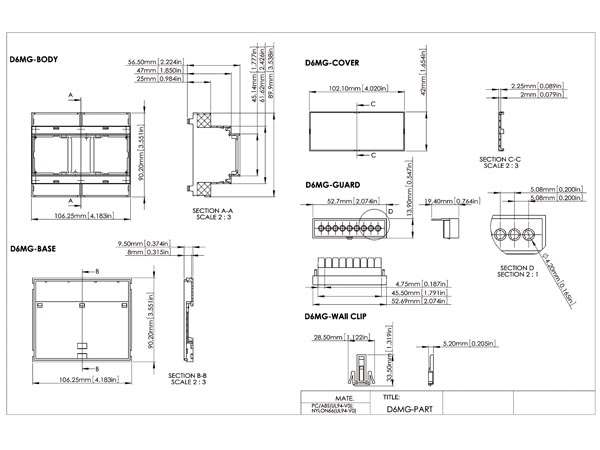

6MG DIN Rail Module Box Line Drawing
Specifications:
Material ABS
Colour Dark Grey
DIN Rail Profile EN60715
DIN Rail Size 6MG

Dimensions 106 x 90 x 57mm
Weight g
This DIN rail module box is designed to build in your own electronics, comes with clear and grey cover. It has easy installation thanks to snap fit construction. Provided with spare snap fit clip.
Order Code   Each
400-356 6MG DIN Rail Module Box 6.48

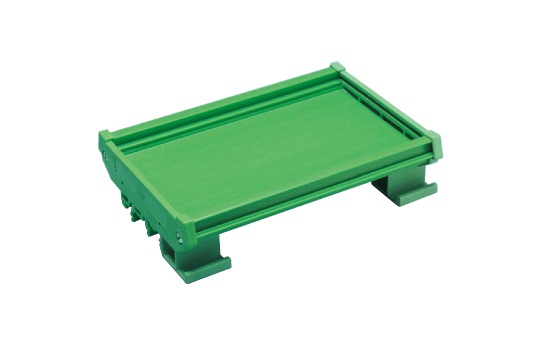

PCB DIN Rail Support
Specifications:
Model
Material ABS
Colour Green


Dimensions 77mm High

These ABS supports are designed to fix Printed Circuit Boards on to a DIN-RAIL. They are idea for power supplies, relays modules, timers and remote control receivers. Manufactured from auto extinguish Polyamide-66 (UL94-V2).

Each support is supplied with: the base, two lateral parts and feet. The dimensions given is for the recommended size of PCB.
Order Code   Each
400-364 C-7564 DIN Rail Adapter 72 x 65mm 3.65
400-365 C-7565 DIN Rail Adapter 72 x 76.25mm 4.14
400-366 C-7566 DIN Rail Adapter 72 x 87.5mm 4.67
400-367 C-7567 DIN Rail Adapter 72 x 98.75mm 4.93
400-368 C-7568 DIN Rail Adapter 72 x 110mm 5.46

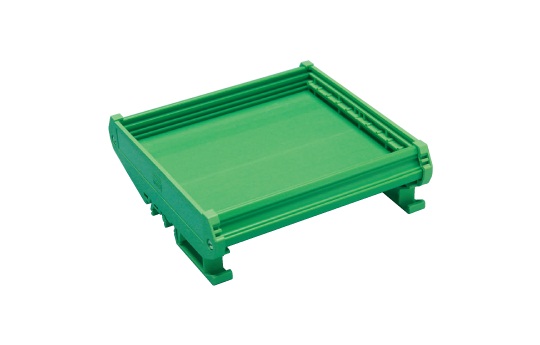

PCB DIN Rail Support
Specifications:
Model
Material ABS
Colour Green


Dimensions 114mm High

These ABS supports are designed to fix Printed Circuit Boards on to a DIN-RAIL. They are idea for power supplies, relays modules, timers and remote control receivers. Manufactured from auto extinguish Polyamide-66 (UL94-V2).

Each support is supplied with: the base, two lateral parts and feet. The dimensions given is for the recommended size of PCB.
Order Code   Each
400-385 C-7585 DIN Rail Adapter 107 x 76.25mm 5.63
400-386 C-7586 DIN Rail Adapter 107 x 87.5mm 6.11
400-387 C-7587 DIN Rail Adapter 107 x 98.5mm 6.78
400-388 C-7588 DIN Rail Adapter 107 x 110mm 7.31
400-389 C-7589 DIN Rail Adapter 107 x 121.25mm 7.97
400-390 C-7590 DIN Rail Adapter 107 x 132.5mm 8.51
400-393 C-7593 DIN Rail Adapter 107 x 166.25mm 10.34
