 Cebek Electronic Kits

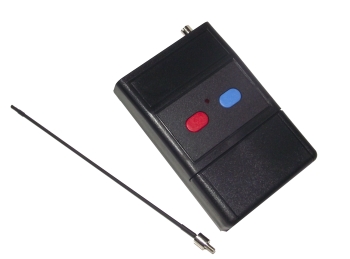

Cebek 2-Channel RF Transmitter



2-Channel RF Transmitter (100 metre range)

Specifications:
ReferenceTL-322
Group3
Carrier Frequency433.92 MHz
Number of Channels2
Range100m
Consumption20mA
Power Supply12VDC 23A Battery
Dimensions60 x 60 x 24mm
Weight50g
Technical Information >Download the Handbook for full specifications and applications
The Cebek TL-322 is a two channel transmitter with momentary switch action for Group 3 Cebek RF remote control receivers. It has a range of about 100m in an open space. It uses a carrier frequency of 433.92MHz. This transmitter uses an exclusive single identification code. Communication between transmitter and receiver is established via a data frame with a security code, matching transmitters and receivers that prevents the connection from any other RF equipment.
Will Operate with the following Receivers
Single Channel (12-24Vdc) Latching/MomentaryTL-310
Single Channel (230Vac) Latching/MomentaryTL-312
Two Channel (12-24Vdc) Latching/Momentary & TimedTL-601
Two Channel (230Vac) Latching/Momentary & TimedTL-602
Single Channel (230Vac) Latching/MomentaryTL-612
Two Channel (230Vac) Latching/MomentaryTL-613

Related Products::

Battery23A

Order Code Each
TL-322

Cebek 2-Channel RF Transmitter (Momentary)

27.22
