TV and Radio Aerials

20 Element Mini Compact Digital Log Aerial Super compact design for discrete installs
  • Ideal for home, caravan or boat
  • No assembly required
  • Vertical or horizontal fitting option
Specifications:
Model LPCT
Frequency Range 470 - 790MHz
Forward Gain dBd 5.3
  dBi 7.5
Front/Back Ratio dB >17.0
Beam Width +/- deg 30°
Dimensions 385 x 315mm
Weight g
Will receive all locally available digital and analogue terrestrial TV signals. 4G filtering LTE800, F-Connector. Includes all mounting clamps and bolts to fit on to mast.
Order Code   Each
449-606 10 Element Mini Compact Digital Log Aerial 12.75 This Product will only be sent by Carrier, check terms for current charge.

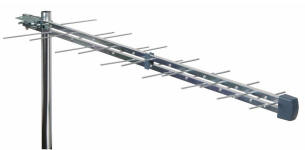

Labgear 28 Element Log-periodic Aerial No assembly required
  • Highly directional design
  • Balanced performance 470-790MHz
  • Labgear 4G filter inside
  • Vertical or horizontal fitting option
Specifications:
Model LOG28T
Channel 21 - 60
Frequency Range 470 - 790MHz
Forward Gain dBd 8.0
  dBi 10.2
Front/Back Ratio dB >20.0
Beam Width +/- deg 26°
Dimensions 985 x 340mm
Weight g
Will receive all locally available digital and analogue terrestrial TV signals. 4G filtering LTE800, F-Connector. Includes all mounting clamps and bolts to fit on to mast.
Order Code   Each
449-608 Labgear 28 Element 12db Log-periodic End Mount Digital Aerial (4G) 19.71 This Product will only be sent by Carrier, check terms for current charge.

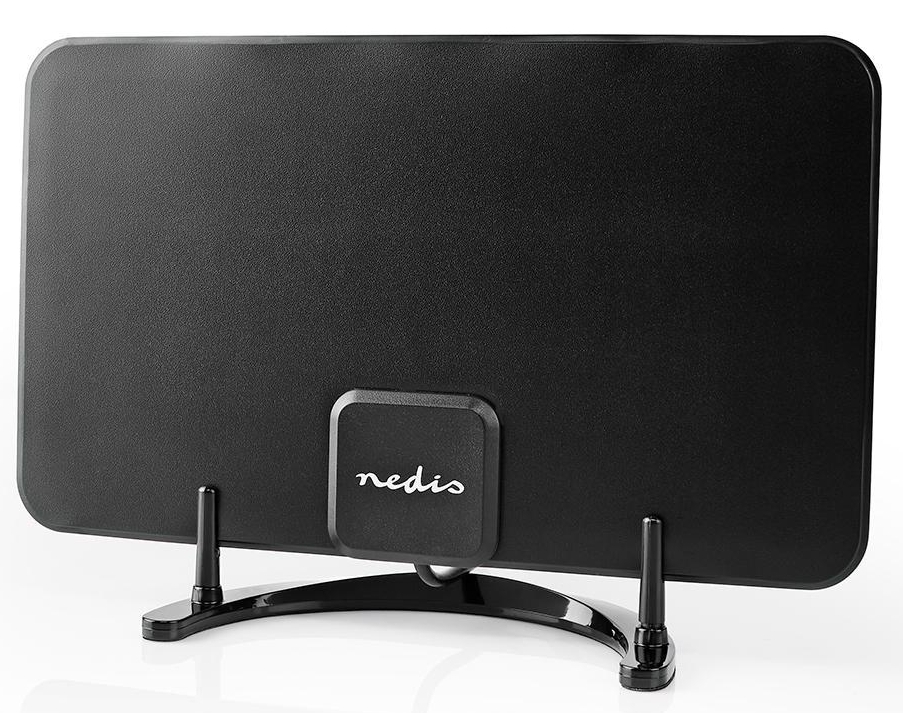

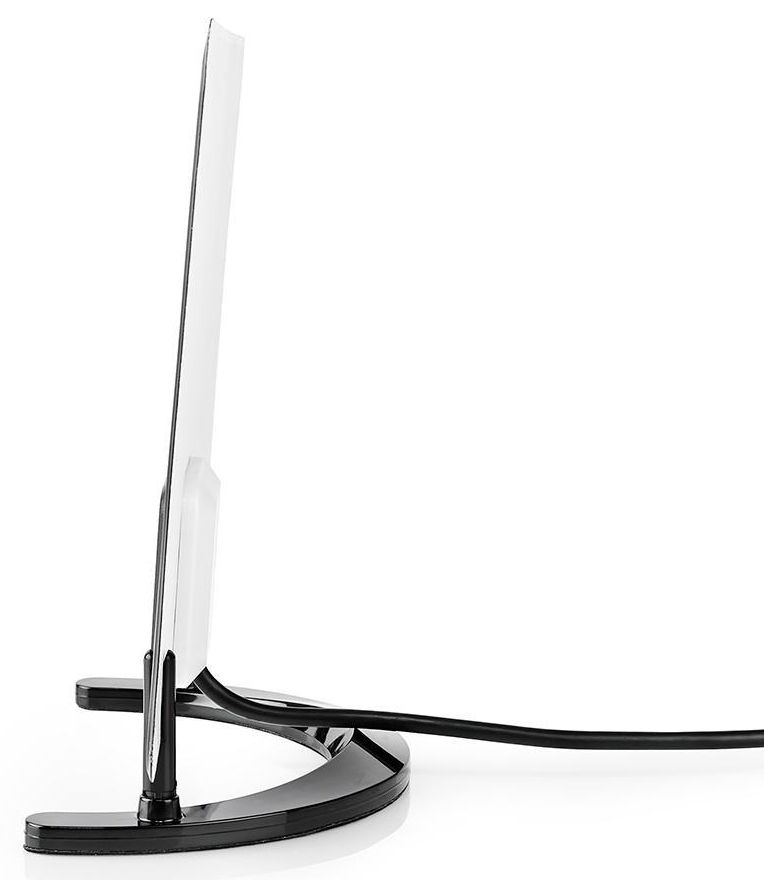

Indoor TV Aerial Portable Antenna
Specifications:
Model ANIR2501BK
Frequency Range FM 87.5 - 108.5MHz
Frequency Range UHF 470 - 790MHz
Frequency Range VHF 170 - 230MHz
Gain 28dB
Beam Width 360°
Power Supply 5Vdc (Supplied)
Dimensions 245 x 150 x 50mm
Weight 320g
This indoor DVB-T/T2 antenna ensures a stable reception of free-to-air channels, pay television (if you’re subscribed) and FM radio signals. The antenna features a compact and stylish design that blends in with any interior, without being too distracting. Fitted with 2 metres 75 ohm cable, LTE 800 filter and supplied with power supply. This TV Aerial should be capable of receiving signals from transmitters located within 25km
Order Code   Each
449-635 Indoor HDTV Antenna 14.16



Digital radio (DAB) outdoor aerial
Specifications:
Frequency Range  220 - 240MHz



Dimensions 255 x 160 x 663mm
Weight 520g
A high quality DAB radio aerial which is specifically designed for digital radio reception. An Omni directional, folded dipole construction with F type connection.  Supplied with a rubber boot for protecting the input connection and V-bolts to secure on to mast.
Order Code   Each
449-609 Digital radio (DAB) outdoor aerial 7.95



C-0509 Antenna
Specifications:
Model C-0509
Frequency Range 433.92 MHz. / 868.3 MHz

Connection 50Ω RG58 Cable (2.5m)
Material Stainless Steel
Mounting Hole 8mmØ
Dimensions 170 x 34mmØ
Weight g
Download Handbook > Download the Handbook for full specifications and applications
Hybrid module with high efficacy and miniaturised sizes. They allow to accurately and easily built controls via radio, like remote controls, alarms via radio, data transmission, voice transmission, pictures transmission, etc. They are certified for the frequency 433.92 MHz, required by the EU for the exclusive use in remote control field. The emitters’ frequency is controlled by a SAW oscillator. The receivers are low absorption, tight band and high immunity against noise.
Order Code   Each
449-620 Rod Antenna 50Ω 16.55

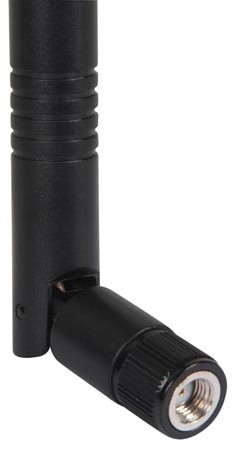

High Gain WiFi Antenna High Gain WiFi Aerial
Specifications:
Model ANTWIFI4
Frequency Range 2400 MHz. / 2500 MHz
Bandwidth 100 MHz
Gain 9dBi
Radiation Omni
Polarization Vertical
Maximum Power 50 Watts
Wind velocity m/s
Connection RP-SMA
Dimensions 390 x 17mmØ
Weight 128g
Hybrid module with high efficacy and miniaturised sizes. They allow to accurately and easily built controls via radio, like remote controls, alarms via radio, data transmission, voice transmission, pictures transmission, etc. They are certified for the frequency 433.92 MHz, required by the EU for the exclusive use in remote control field. The emitters’ frequency is controlled by a SAW oscillator. The receivers are low absorption, tight band and high immunity against noise.
Order Code   Each
449-630 High Gain 390mm WiFi Antenna 9.75
