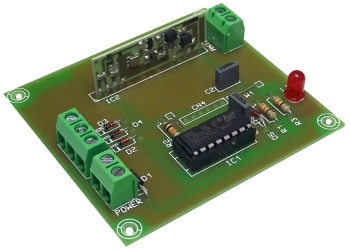

Cebek 2-Channel RF Transmitter



2-Channel RF Transmitter

Specifications:
ReferenceTL-325
Group3
Carrier Frequency433.92 MHz
Number of Channels2
Range100m
Consumption20mA
Power Supply12VDC
Dimensions72 x 64 x 18mm
Weight27g
Technical Information >Download the Handbook for full specifications and applications
The Cebek TL-325 is a two channel 12Vdc transmitter for Group 3 Cebek RF remote control receivers. It uses a carrier frequency of 433.92MHz. Communication between transmitter and receiver is established via a data frame with a security code, matching transmitters and receivers that prevents the connection from any other RF equipment. Requires an antenna to emit with maximum power and efficiency, this must be installed before operating the remote control. You can use a rigid copper wire 1mmØ, connecting to the terminal marked antenna. For longer range antennas use Cebek C-0509 rigid aerial.
Will Operate with the following Receivers
Single Channel (12-24Vdc) Latching/MomentaryTL-310
Dual Channel (230Vac) Latching/MomentaryTL-311
Single Channel (230Vac) Latching/MomentaryTL-612
Two Channel (230Vac) Latching/MomentaryTL-613

Related Products::
Power SupplyFE-103
AntennaC-0509

Order Code Each
TL-325Cebek 2-Channel RF Transmitter (Momentary)24.99
