Cebek 2-Channel 230VAC RF Receiver


2-Channel 230VAC RF Receiver supplied in IP55 Enclosure
Specifications:
Reference TL-602
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 2
Relay Output SPDT 3A
Consumption mA
Power Supply 230VAC
Dimensions 160 x 120 x 75mm
Weight 491g
Technical Information > Download the Handbook for full specifications and applications

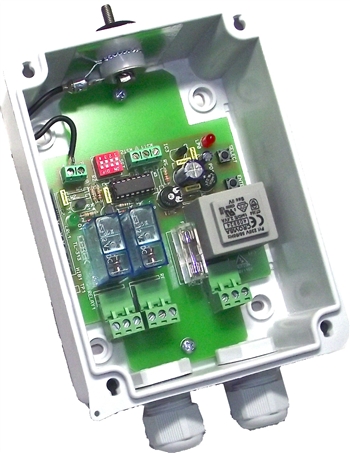

The Cebek TL-602 is a professional 230VAC RF receiver with a 2-channel relay output supplied with antenna and mounted inside a IP55 rated box. Can be configured for single, double and timer operation. It will operate with any of the transmitters listed below. It verifies the security code you have selected (13,122 combinations) and operates the relay. Meets regulations 89/336/EEC, 23/31/CEE, 93/68/CEE, regulations and Rohs ETS 300-200.
Will Operate with the following Transmitters
Single Channel (30m) Momentary Action Key Fob TL-300
Dual Channel (30m) Latching Action Key Fob TL-301
Single Channel (100m) Momentary Action Hand Held TL-321
Two Channel (100m) Momentary Action Hand Held TL-322
Single Channel (300m) Momentary Action Hand Held TL-323
Two Channel (300m) Momentary Action Hand Held TL-324
Two Channel (100m) Momentary Action No Housing TL-325
Two Channel (300m) Momentary Action No Housing TL-326
Four Channel (100m) Transmitter  Hand Held TL-420
Eight Channel (100m) Transmitter Hand Held TL-421
Sixteen Channel (100m) Transmitter Hand Held TL-428
Eight Channel (100m) Transmitter No Housing TL-429
Sixteen Channel (100m) Transmitter No Housing TL-432
Eight Channel (300m) Transmitter No Housing TL-439
Sixteen Channel (300m) Transmitter No Housing TL-442
Eight Channel (100m) Transmitter USB.TL-40

Related Products::
Antenna Supplied

Order Code   Each
TL-602 Cebek 2-Channel 230VAC RF Receiver (Momentary/Latching and Timed) 55.50
