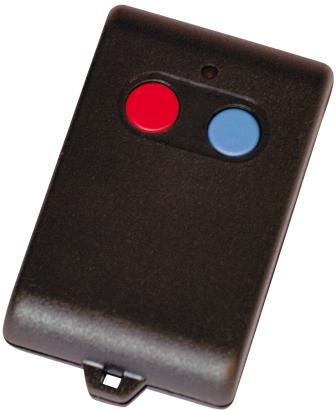

Cebek 2-Channel RF Transmitter


Cebek 2-Channel RF Transmitter (Black Body)
Specifications:
Reference TL-6
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 2
Range 25m
Consumption 2mA
Power Supply 12VDC 23A Battery
Dimensions 57 x 38 x 16mm
Weight 44g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-6 is a two channel transmitter for Cebek 2-channel RF remote control receivers. Through the Certified radio frequency signal of 433.92 MHz. the transmitter will emit a coded signal to the receivers, allowing it to switch off or on the receivers relays. To personalise remote controls you have more than 13,122 combinations, the required code is easily selected thanks to the DIL switch fitted inside each remote control. All transmitter modules are supplied in an key fob style enclosure with battery.
Will Operate with the following Receivers
Two Channel (12Vdc) Momentary Action TL-2
Single Channel (12Vdc) Latching Action TL-7
Two Channel (12Vdc) Latching Action TL-8
Two Channel (230Vdc) Latching Action TL-10
Single Channel (12Vdc) Momentary/Latching TL-101
Two Channel (12Vdc) Momentary/Latching TL-102
Single Channel (230Vac) Momentary/Latching TL-103
Two Channel (230Vdc) Momentary/Latching TL-104
Re-Transmission Booster TL-99

Related Products::

Battery 23A

Order Code   Each
TL-6 Cebek 2-Channel RF Transmitter (Black) 13.87
TL-6C Cebek 2-Channel RF Transmitter (Cream) 13.87
