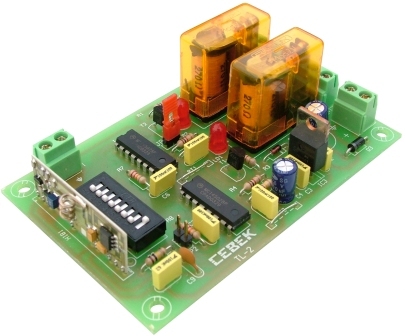

Cebek 2-Channel RF Receiver



Cebek 2-Channel RF Receiver

Specifications:
Reference TL-2
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 2
Relay Output 3A
Consumption 120mA
Power Supply 12VDC
Dimensions 99 x 64 x 30mm
Weight 96g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-2 is a two channel RF remote control receiver with a relay output. It will recognise the signal from either TL-5, TL-6, TL-11, TL-12, TL-13, TL-14, TL-15 or TL16 transmitters It verifies the security code and maintains the output until you stop pressing the push button of the transmitter (Momentary Switch Action). You could configure your own security code (between 13,122 possibilities) as well as working with theTL-5 or the TL-6 transmitters. It has PCB mounted DIL switches to select the code, antenna output, LED and acoustic signal for the output as well as connection terminals.
Will Operate with the following Transmitters
Single Channel (12Vdc) 25m TL-5
Two Channel (12Vdc) 25m TL-6
Single Channel (12Vdc) 100m TL-11
Two Channel (12Vdc) 100m TL-12
Single Channel (12Vdc) 300m TL-13
Two Channel (12Vdc) 300m TL-14
Two Channel (12Vdc) 100m (No Housing) TL-15
Two Channel (12Vdc) 300m (No Housing) TL-16
Re-Transmission Booster TL-99

Related Products::
Power Supply FE-113
Antenna C-0509

Order Code   Each
TL-2 Cebek 2-Channel RF Receiver (Momentary) 29.82
