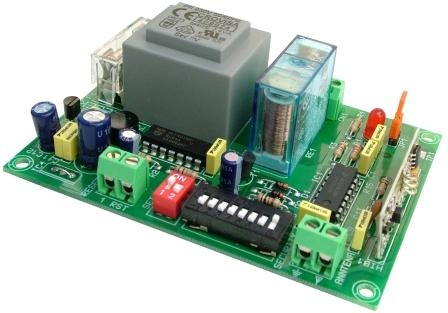

Cebek 1-Channel RF Receiver



Cebek 1-Channel RF Receiver

Specifications:
Reference TL-103
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 1
Relay Output 5A
Consumption 55mA
Power Supply 230VAC
Dimensions 72 x 77 x 30mm
Weight 188g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-103 is a mains operated single channel RF remote control receiver with relay output. It will recognise the signal sent from any Group 1 Cebek transmitter. It verifies the security code you have selected (13,122 combinations) and operates the relay. The relay on the TL-103 can be configured with a momentary or latching action. It has PCB mounted DIL switches to select the security code.
Will Operate with the following Transmitters
Single Channel 25m TL-5
Two Channel 25m TL-6
Single Channel 100m TL-11
Two Channel 100m TL-12
Single Channel 300m TL-13
Two Channel 300m TL-14
Two Channel 100m (No Housing) TL-15
Two Channel 300m (No Housing) TL-16
Re-Transmission Booster TL-99

Related Products::
Antenna C-0509

Order Code   Each
TL-103 Cebek 1-Channel RF Receiver (Momentary/Latching) 32.13
