 Cebek Electronic Kits

Cebek 2-Channel RF Receiver



Cebek 2-Channel RF Receiver (Latching)

Specifications:
ReferenceTL-10
Group1
Carrier Frequency433.92 MHz
Number of Channels2
Relay Output3A
Consumption55mA
Power Supply230VAC
Dimensions120 x 77 x 30mm
Weight214g
Technical Information >Download the Handbook for full specifications and applications

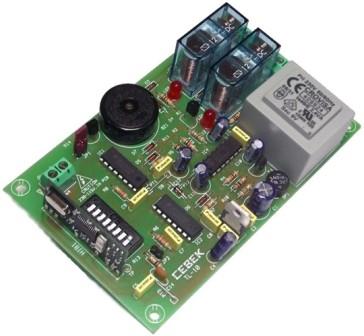

The Cebek TL-10 is a mains operated two channel RF remote control receiver with a relay output. It will recognise the signal from either TL-5, TL-6, TL-11, TL-12, TL-13, TL-14, TL-15 or TL-16 transmitters. It verifies the security code and maintains the output even if you release the switch (Latching Switch Action). To stop the output you must press the push button of the transmitter again (Latching Action). You can configure your own security code (13,122 possibilities). It has PCB mounted DIL switches to select the code, antenna output, LED and acoustic signal for the output as well as connection terminals
Will Operate with the following Transmitters
Single Channel (12Vdc) 25mTL-5
Two Channel (12Vdc) 25mTL-6
Single Channel (12Vdc) 100mTL-11
Two Channel (12Vdc) 100mTL-12
Single Channel (12Vdc) 300mTL-13
Two Channel (12Vdc) 300mTL-14
Two Channel (12Vdc) 100m (No Housing)TL-15
Two Channel (12Vdc) 300m (No Housing)TL-16
Re-Transmission BoosterTL-99

Related Products::
AntennaC-0509

Order Code Each
TL-10Cebek 2-Channel RF Receiver (Latching)35.60
