Cebek 2-Channel RF Receiver


Cebek 2-Channel RF Receiver (Latching)
Specifications:
Reference TL-8
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 1
Relay Output 3A
Consumption 120mA
Power Supply 12VDC
Dimensions 92 x 50 x 30mm
Weight 110g
Technical Information > Download the Handbook for full specifications and applications

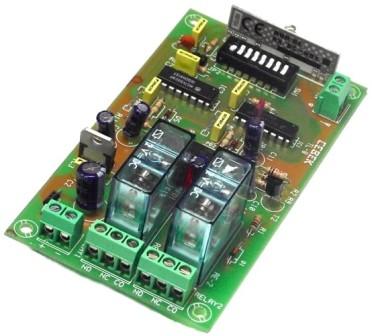

The Cebek TL-8 is a two channel RF remote control receiver with a relay output. It will operate with any of the transmitters listed below. It verifies the security code and maintains the output even if you release the switch. To stop the output you must press the push button of the transmitter again (Latching Action). You could configure your own security code (between 13,122 possibilities) as well as working with theTL-5 or the TL-6 transmitters. It has PCB mounted DIL switches to select the code, antenna output, LED and acoustic signal for the output as well as connection terminals
Will Operate with the following Transmitters
Single Channel (12Vdc) 25m Key Fob TL-5
Two Channel (12Vdc) 25m Key Fob TL-6
Re-Transmission Booster TL-99

Related Products::
Power Supply FE-113
Additional Antenna C-0509

Order Code   Each
TL-8 Cebek 2-Channel RF Receiver (Latching)* 28.53
