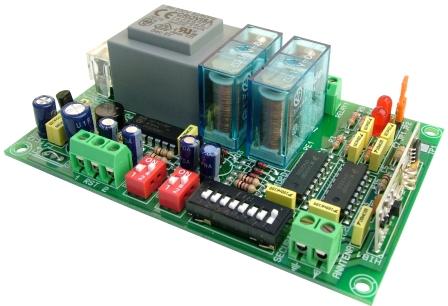

Cebek 2-Channel RF Receiver



Cebek 2-Channel RF Receiver

Specifications:
Reference TL-104
Group 1
Carrier Frequency 433.92 MHz
Number of Channels 2
Relay Output 5A
Consumption 65mA
Power Supply 230VAC
Dimensions 72 x 110 x 30 mm
Weight 220g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-104 is a two channel mains operated RF remote control receiver with relay outputs. It will recognise the signal sent from any Group 1 Cebek transmitter. It verifies the security code you have selected (13,122 combinations) and operates the appropriate relay. The relays on the TL-104 can be configured with a momentary or latching action. It has PCB mounted DIL switches to select the security code.
Will Operate with the following Transmitters
Single Channel 25m TL-5
Two Channel 25m TL-6
Single Channel 100m TL-11
Two Channel 100m TL-12
Single Channel 300m TL-13
Two Channel 300m TL-14
Two Channel 100m (No Housing) TL-15
Two Channel 300m (No Housing) TL-16
Re-Transmission Booster TL-99

Related Products::
Antenna C-0509

Order Code   Each
TL-104 Cebek 2-Channel RF Receiver (Momentary/Latching) 38.62
