Cebek 2-Channel 12-24VDC RF Receiver


2-Channel 12-24VDC RF Receiver with Enclosure
Specifications:
Reference TL-601
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 2
Relay Outputs SPDT 3A
Consumption 130mA
Power Supply 12 - 24VDC
Dimensions 160 x 120 x 75mm
Weight 420g
Technical Information > Download the Handbook for full specifications and applications

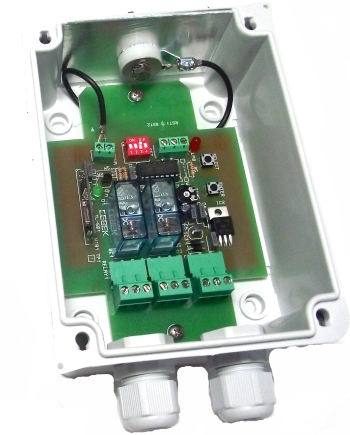

The Cebek TL-601 is a twin channel RF remote control receiver with relay outputs. It will operate with any of the transmitters listed below. It verifies the security code you have selected (13,122 combinations) and operates the corresponding relay. The relay on the TL-601 can be configured with a momentary, latching or timed (0.1 to 132sec)action. Supplied in an IP55 rated enclosure with antenna.
Will Operate with the following Transmitters
Single Channel (30m) Momentary Action Key Fob TL-300
Dual Channel (30m) Latching Action Key Fob TL-301
Single Channel (100m) Momentary Action Hand Held TL-321
Two Channel (100m) Momentary Action Hand Held TL-322
Single Channel (300m) Momentary Action Hand Held TL-323
Two Channel (300m) Momentary Action Hand Held TL-324
Two Channel (100m) Momentary Action No Housing TL-325
Two Channel (300m) Momentary Action No Housing TL-326
Four Channel (100m) Transmitter  Hand Held TL-420
Eight Channel (100m) Transmitter Hand Held TL-421
Sixteen Channel (100m) Transmitter Hand Held TL-428
Eight Channel (100m) Transmitter No Housing TL-429
Sixteen Channel (100m) Transmitter No Housing TL-432
Eight Channel (300m) Transmitter No Housing TL-439
Sixteen Channel (300m) Transmitter No Housing TL-442
Eight Channel (100m) Transmitter USB.TL-40

Related Products::
Power Supply FE-113
Transmitter Module TL-301
Antenna Supplied

Order Code   Each
TL-601 Cebek 2-Channel 12-24VDC RF Receiver Momentary/Latching and Timed) 51.90
