  Cebek Electronic Kits

Cebek Control Keyboard for BCD Modules


Cebek Control Keyboard for BCD Modules
Specifications:
Reference CD-17
Range 0 -9999
Consumption 55mA
Power Supply 12VDC
Dimensions 96 x 95 x 30mm
Weight 146g
Technical Information > Download the Handbook for full specifications and applications

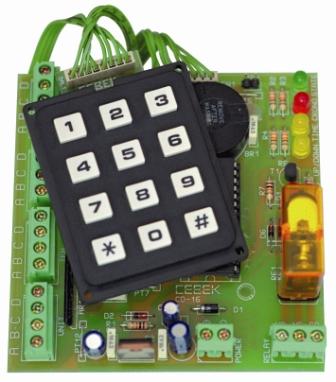

The Cebek CD-17 module is a control keypad with BCD output for Cebek BCD display modules. Thanks to the incorporated keyboard, you could visualise on a BCD display any number composed by a maximum of 4 digits. The display could be on intermittence function, light off when there is no number, as well as the connection of the relay output after inserting a new digit. The CD-17 allows the control of CD-10, CD-11, CD-40 and CD-41 Displays.
This Module can control the following Displays
150mm BCD Red LED Display CD-10
300mm BCD Red LED Display CD-11
150mm BCD Super Bright LED Display CD-28
300mm BCD High Visibility Display CD-29
Screen with 2 Displays CD-40
Screen with Display CD-41
Group Counter CD-46


Related Products::
Power Supply FE-103
Optional Metal Keypad C-5236


Order Code   Each
CD-17 Cebek Control Keyboard for BCD Modules 46.73
