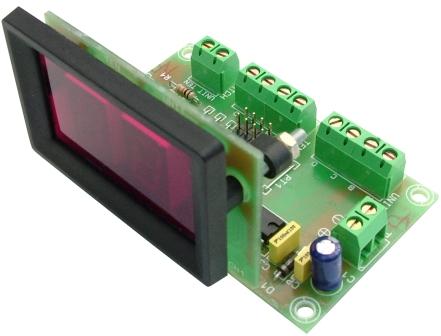

Cebek Screen with 2 Displays for BCD Modules


Cebek Screen with 2 Displays for BCD Modules
Specifications:
Reference CD-40
Range 0 -99
Consumption 90mA
Power Supply 12VDC
Dimensions 80 x 48 x 45mm
Weight 74g
Technical Information > Download the Handbook for full specifications and applications
The Cebek CD-40 module is a 2-digit display controlled by BCD. They decode the BCD inserted to each input, indicating the number of decimal on the corresponding display. They allow a multiplexed input, (Latch), point selection and display extinction function for a low consumption. The CD-40 could be controlled by the CD-12 and the CD-17.
This Display can be controlled by the following Control modules
Up/Down Counter CD-12
Control Keyboard CD-17


Related Products::
Power Supply FE-103


Order Code   Each
CD-40 Cebek Screen with 2 Displays for BCD Modules 12.94
