Cebek 300mm BCD High Visibility Display


Cebek 300mm BCD High Visibility Display
Specifications:
Reference CD-29
Display 238 x 5mmØ LED's
Range 0 - 9
Inputs BCD CMOS
Consumption 130mA
Power Supply 21VDC
Dimensions 290 x 180 x 15mm
Weight 240g
Technical Information > Download the Handbook for full specifications and applications

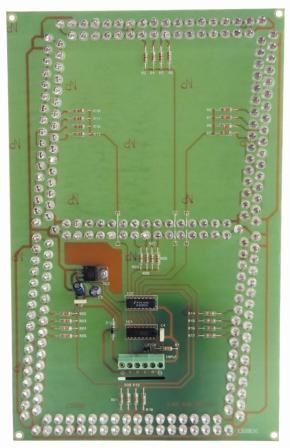

The Cebek CD-29 module is a giant 300mm display, it is composed of super high luminosity 5mm LED's were greater visibility is required. They can show all digits between 0 and 9 through the BCD input. When used with other Cebek modules they can be configured to indicate as a clock, counter or chronometer. The CD-29 display accept a multiplexed or a standard BCD operating signal.
This Display can be controlled by the following Control modules
Up/Down Counter CD-12
Up/Down Counter CD-14
Digital Clock CD-15
Chronometer CD-16
Control Keyboard CD-17
Clock/Thermometer CD-25
Clock/Date and Thermometer CD-26


Related Products::
Power Supply FE-137


Order Code   Each
CD-29 Cebek 300mm BCD High Visibility Display 51.60
