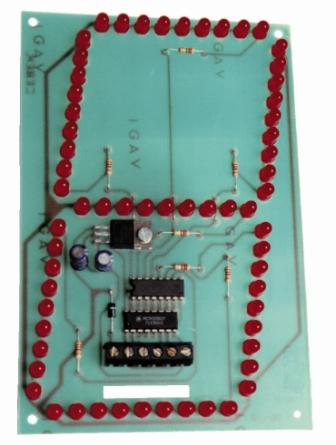

Cebek 150mm BCD Red LED Display


Cebek 150mm BCD Red LED Display
Specifications:
Reference CD-10
Display 63 x 5mmØ LED's
Range 0 - 9
Inputs BCD CMOS
Consumption 130mA
Power Supply 21VDC
Dimensions 160 x 103 x 15mm
Weight 110g
Technical Information > Download the Handbook for full specifications and applications
The Cebek CD-10 module is a giant 150mm display, it is composed of high luminosity 5mm LED's. They can show all digits between 0 and 9 through the BCD input. When used with other Cebek modules they can be configured to indicate as a clock, counter or chronometer. The CD-10 display accept a multiplexed or a standard BCD operating signal.
This Display can be controlled by the following Control modules
Up/Down Counter CD-12
Up/Down Counter CD-14
Digital Clock CD-15
Chronometer CD-16
Control Keyboard CD-17
Clock/Thermometer CD-25
Clock/Date and Thermometer CD-26


Related Products::
Power Supply FE-137


Order Code   Each
CD-10 Cebek 150mm BCD Red LED Display 25.70
