Cebek 16-Channel 100m RF Transmitter

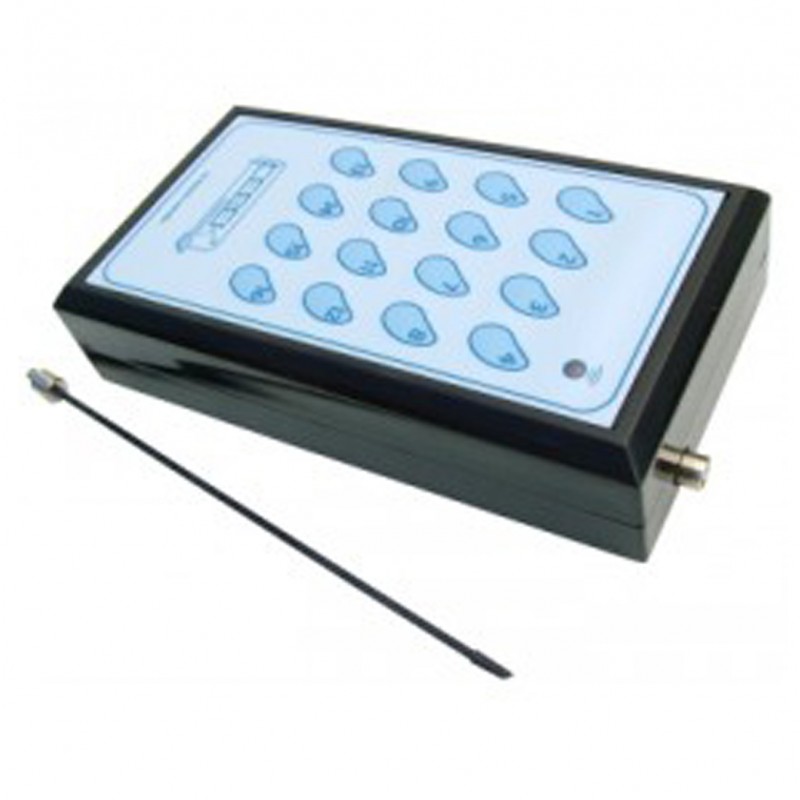

Cebek TL-428 16-Channel 100m RF Transmitter
Specifications:
Reference TL-428
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 16
Range 100m
Consumption 24mA
Power Supply 12VDC
Dimensions 125 x 67 x 31mm
Weight 27g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-428 is an sixteen channel transmitter with momentary switch action for Group 3 Cebek RF remote control receivers. It has a range of about 100m in an open space. It uses a carrier frequency of 433.92MHz. This transmitter uses an exclusive single identification code. Communication between transmitter and receiver is established via a data frame with a security code, matching transmitters and receivers that prevents the connection from any other RF equipment.
Will Operate with the following Receivers
Single Channel (12-24Vdc) Latching/Momentary TL-310
Two Channel (12-24Vdc) Latching/Momentary & Timed TL-311
Four Channel (12-24Vdc) Latching/Momentary & Timed TL-422
Eight Channel (12Vdc) Latching/Momentary & Timed TL-423
Two Channel (12-24Vdc) Latching/Momentary & Timed TL-601
Two Channel (230Vac) Latching/Momentary & Timed TL-602
Single Channel (230Vac) Latching/Momentary TL-612
Two Channel (230Vac) Latching/Momentary TL-613

Related Products::

Battery 23A

Order Code   Each
TL-428

Cebek 16-Channel 100m RF Transmitter

 93.67
