Cebek Clock/Thermometer and Date for 7-Segment Display Modules



Cebek Clock/Thermometer and Date for 7-Segment Display Modules

Specifications:
ReferenceCD-26
Range0 - 9999
Consumption520mA
Power Supply12VDC
Dimensions179 x 105 x 15mm
Weight190g
Technical Information >Download the Handbook for full specifications and applications

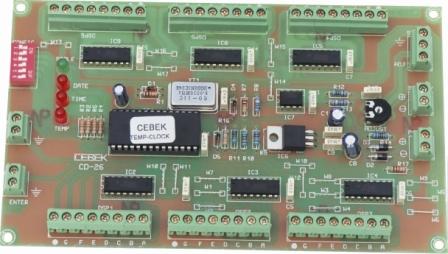

The Cebek CD-26 module is a 7 segments clock with date and thermometer with 6 data outputs. This module can be used only as clock, as thermometer or both at the same time (that means it will cyclically between the two). The intermittence time to display both registers can be adjusted between 1 and 18 sec. Using the configuration mode, you can display Celsius or Fahrenheit degrees. The temperature range is from -23 to 105ºC. The hour (hours and minutes) is indicated in format 24hour. It offers a battery auxiliary input to avoid to loose the memory when the module is not supplied. It can control 4 displays CD-23, CD-24, CD-53 or CD-54
This Module can drive the following Displays
150mm 7-Segment DisplayCD-23
300mm 7-Segment DisplayCD-24




Related Products::
Power SupplyFE-2


Order Code Each
CD-26Cebek Clock/Thermometer and Date for 7-Segment Display Modules35.40
