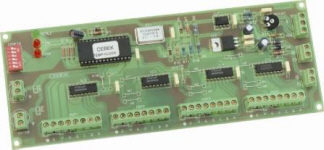

Cebek Clock/Thermometer for 7-Segment Display Modules



Cebek Clock/Thermometer for 7-Segment Display Modules

Specifications:
Reference CD-25
Range 0 - 9999
Consumption 500mA
Power Supply 12VDC
Dimensions 220 x 82 x 15mm
Weight 178g
Technical Information > Download the Handbook for full specifications and applications

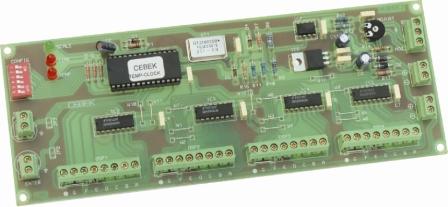

The Cebek CD-25 module is a 7-segment clock and thermometers with 4 data outputs. This module can be used only as clock, as thermometers or both at the same time (that means it will cyclically between the two). The intermittent time to display both registers can be adjusted between 1 and 18 sec. Using the configuration mode, you can display Celsius or Fahrenheit degrees. The measurement range is from -23 to 105ēC. The hour (hours and minutes) is indicated in format 24H. It offers a battery auxiliary input to avoid to loose the memory when the module is not supplied. It can control 4 displays CD-23, CD-24, CD-53 or CD-54.
This Module can control the following Displays
150mm 7-Segment Display CD-23
300mm 7-Segment Display CD-24




Related Products::
Power Supply FE-2



Order Code   Each
CD-25 Cebek Clock/Thermometer for 7-Segment Display Modules 44.14
