Velbus Single Push Button Glass Touch Switch Velleman Kits

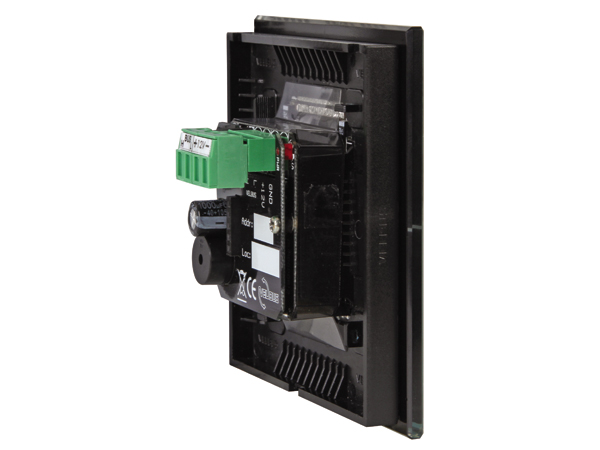

Velleman Velbus 1 Push Button (Rear)

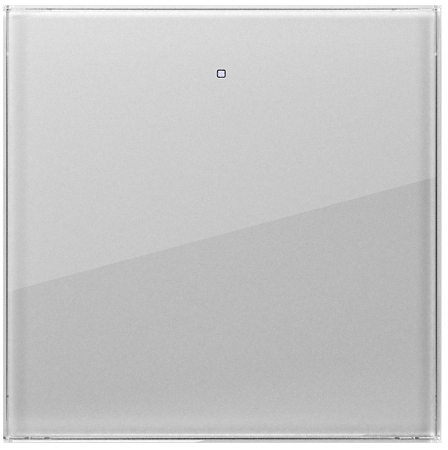

Velleman Velbus 1 Push Button White Glass

Specification Features:
  • LED feedback and night orientation.
  • Different reaction times can be set for each button, 0, 1, 2 or 3 seconds.
  • Detects long or short press.
  • Multi-channel possibility, each short press activates next channel (max. 8).
  • Extended day, week and year timers with possible sun (rise/set) synchronization* to simulate button press.
  • On board temperature sensor to drive heating or air-conditioning.
  • LED indication for supply and data ( at backside).
  • mTouch© technology.
  • Safety glass.
  • power supply: 12...18VDC 18mA
  • 250 possible addresses.
  • Uses 1 address per 8 buttons and per temperature sensor

Read the fully Illustrated Manual for VMBGP1B/W

 PDF Download

Power Supply

VMB3PS

Mounting Frames

VMBGPF

Dimensions

86 x 86 x 28mm

Weight

kg

Glass panel with 1 touch button, the button has a white LED feedback, also serving as orientation light. Audible click feedback during touch. Additional software to up grade and improve this product is available from the Velleman support section on there website.
Order Code   Each
VMBGP1B Velleman Velbus 1 Push Button Black Glass 64.98
VMBGP1W Velleman Velbus 1 Push Button White Glass 64.98



Velbus Double Push Button Glass Touch Switch

Velleman Velbus 2 Push Button White Glass (Rear)

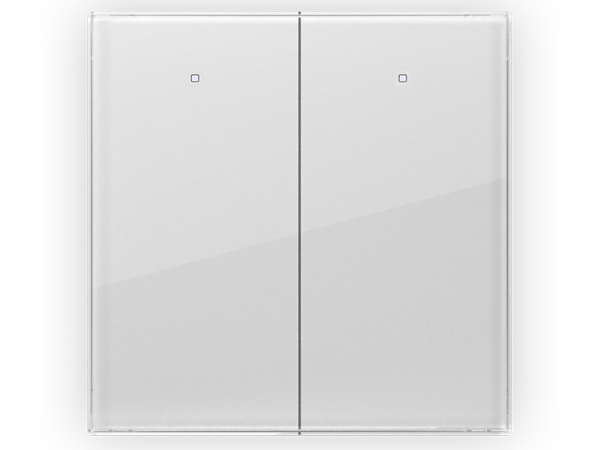

Velleman Velbus 2 Push Button White Glass

Specification Features:
  • LED feedback and night orientation.
  • Different reaction times can be set for each button, 0, 1, 2 or 3 seconds.
  • Detects long or short press.
  • Multi-channel possibility, each short press activates next channel (max. 8).
  • Extended day, week and year timers with possible sun (rise/set) synchronization* to simulate button press.
  • On board temperature sensor to drive heating or air-conditioning.
  • LED indication for supply and data ( at backside).
  • mTouch© technology.
  • Safety glass.
  • power supply: 12...18VDC 18mA
  • 250 possible addresses.
  • Uses 1 address per 8 buttons and per temperature sensor

Read the fully Illustrated Manual for VMBGP2B/W

 PDF Download

Power Supply

VMB3PS

Mounting Frames

VMBGPF

Dimensions

86 x 86 x 28mm

Weight

kg

Glass panel with 2 touch buttons, each button has a white LED feedback, also serving as orientation light. Audible click feedback during touch. Additional software to up grade and improve this product is available from the Velleman support section on there website.
Order Code   Each
VMBGP2B Velleman Velbus 2 Push Button Black Glass 78.95
VMBGP2W Velleman Velbus 2 Push Button White Glass 80.73



Velbus Four Push Button Glass Touch Switch

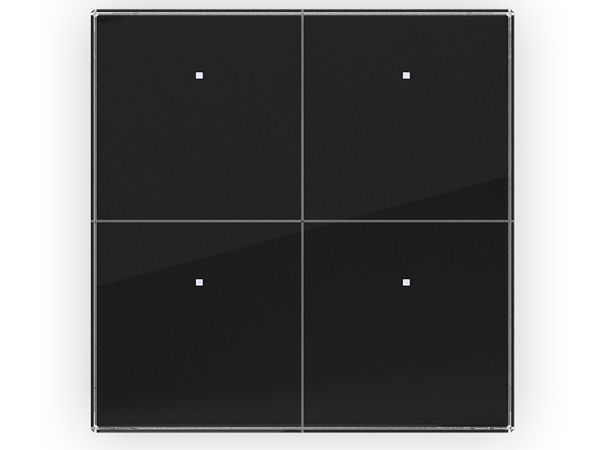

Velbus VMBGP4B Push Button Glass Touch Switch

Velbus Four Push Button Glass Touch Switch (Rear)

Specification Features:
  • LED feedback and night orientation.
  • Different reaction times can be set for each button, 0, 1, 2 or 3 seconds.
  • Detects long or short press.
  • Multi-channel possibility, each short press activates next channel (max. 8).
  • Extended day, week and year timers with possible sun (rise/set) synchronization* to simulate button press.
  • On board temperature sensor to drive heating or air-conditioning.
  • LED indication for supply and data ( at backside).
  • mTouch© technology.
  • Safety glass.
  • power supply: 12...18VDC 18mA
  • 250 possible addresses.
  • Uses 1 address per 8 buttons and per temperature sensor

Read the fully Illustrated Manual for VMBGP4B/W

 PDF Download

Power Supply

VMB3PS

Mounting Frames

VMBGPF

Dimensions

86 x 86 x 28mm

Weight

kg

Glass panel with 4 touch buttons, each button has a white LED feedback, also serving as orientation light. Audible click feedback during touch. Additional software to up grade and improve this product is available from the Velleman support section on there website.
Order Code   Each
VMBGP4B Velleman Velbus 4 Push Button Black Glass 96.48
VMBGP4W Velleman Velbus 4 Push Button White Glass 96.48

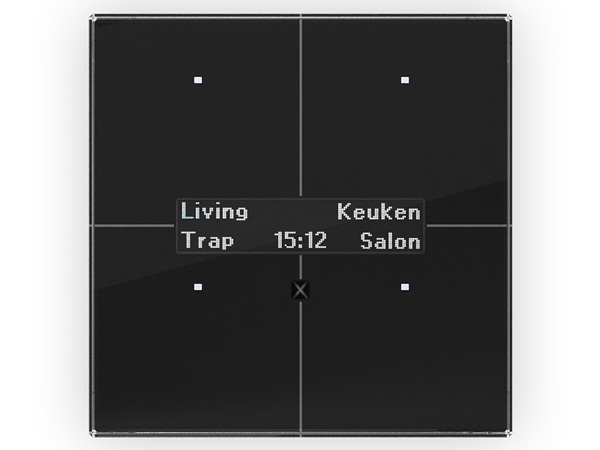

Velbus O-LED Touch Glass Panel

Velbus O-LED Touch Glass Panel

Specification Features:
  • Configuration using Velbus PC interface (e.g.VMB1USB, VMBRSUSB) and
    free VELBUSLINK software.
  • LED feedback and night orientation.
  • Different reaction times can be set for each button, 0, 1, 2 or 3 seconds.
  • Detects long or short press.
  • Extended day, week and year timers with possible sun (rise/set)
    synchronization* to simulate button press.
  • On board temperature sensor to drive heating or air-conditioning.
  • Graphic O-LED display, each button of each page can have custom symbols or text.
  • Scroll through each of the 8 pages to operate up to 32 channels.
  • Infrared receiver, to operate 4 of the 32 channel
  • Display of clock, temperature and energy consumption (see options)
  • LED indication for supply and data ( at backside).
  • mTouch© technology
  • power supply: 12...18VDC
  • Safety glass
  • 250 possible addresses



Read the fully Illustrated Manual for VMBGPODB

 PDF Download

Power Supply

VMB3PS

Mounting Frames

VMBGPF

Dimensions

86 x 86 x 28mm

Weight

kg

Glass panel with 4 touch buttons and O-LED display, each button has a white LED feedback, also serving as orientation light. Audible click feedback during touch. O-LED display has 8 pages using 4 buttons giving a total of 32 buttons. It also includes an infrared receiver

 Additional software to up grade and improve this product is available from the Velleman support section on there website.
Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code   Each
VMBGPODB Velleman Velbus O-LED Touch4 Push Panel Black 161.28

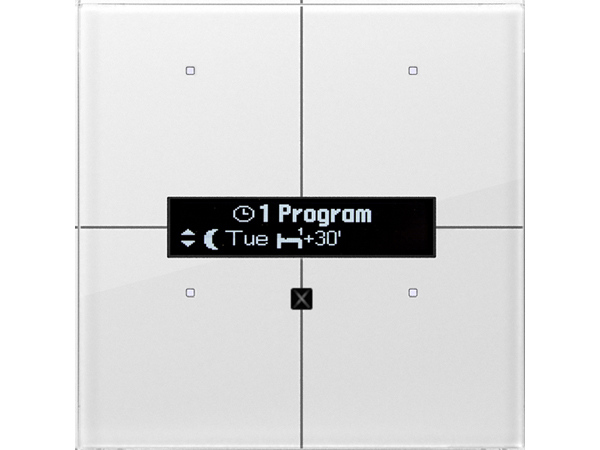

Velbus O-LED Touch Panel

Velbus VMBGPODW Panel

Specification Features:
  • Configuration using Velbus PC interface (e.g.VMB1USB, VMBRSUSB) and
    free VELBUSLINK software.
  • LED feedback and night orientation.
  • Integrated temperature sensor
  • Up to 8 pages of 4 buttons each (= 32 buttons in total)
  • Display of date, time, buttons (max. 32), temperature (max. 13) and energy consumption (max. 4)
  • 3 programs (for example: winter, summer, and vacation) using an astronomical clock
  • Local menu can modify the program of its own buttons and the connected temperature sensors (max. 13)
  • The OLED display can be set in constant dimmed mode (screensaver)
  • Dynamic texts can be displayed (e.g. Sonos info from home center)
  • LED indication for supply and data ( at backside)
  • mTouch© technology
  • Safety glass
  • Power supply: 12...18VDC
  • Consumption: 22mA
  • 250 possible addresses
  • Program steps: max. 159

    optional:

    • VMBGPF: Frame for Velbus Glass Panel (screw version) - 5PCS

Read the fully Illustrated Manual for VMBGPODW

 PDF Download

Power Supply

VMB3PS

Mounting Frames

VMBGPF

Dimensions

86 x 86 x 11mm (Depth 28mm)

Weight

kg

Glass touch panel OLED screen featuring up to 8 pages of 4 buttons, for custom configuration and various operations.
Each page display can hold your own text or image. Furthermore the panel can operate up to 12 external and 1 internal temperature sensors. Each sensor contains its own program to control a heating or cooling installation. You can configure the settings using the panel or via PC software (VELBUSLINK).

 Additional software to up grade and improve this product is available from the Velleman support section on there website.
Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code   Each
VMBGPODW Velleman Velbus O-LED Touch4 Push Panel White 161.28
