Velleman Velbus USB Interface

Clearance Lines

Company Profile

WebShop

Specification Features:

Power supply: 12 ...18VDC @ 13mA
Full duplex RS232C communication with PC
Galvanic separation between the computer and the VELBUS system
USB V20 compatible (full speed 12Mb/s)
Uses Microsoft Windows 'usbser.sys' driver
LED indication for power and data transfer

Read the fully Illustrated Manual for VMB1USB

Power Supply

VMB3PS

Case

Dimensions

43 x 40 x 18mm

Weight

Download Velbus Version 8 Software

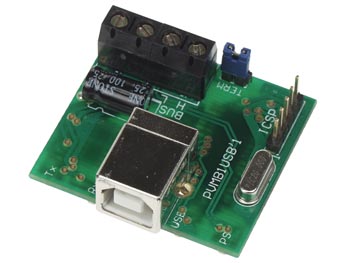

VMB1USB is a small interface module designed to control the Velbus Home Automation System from a PC or Lap top. The module derives it's power from the velbus system. Additional software to up grade and improve this product is available from the Velleman support section on there website.

Velbus Home Automation System for applications and examples of installations download introduction manual
