Velleman Velbus 8 Channel Push Button Module Velleman Kits

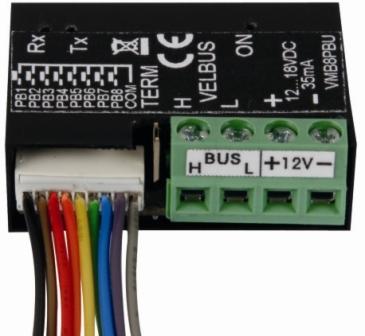

Velleman Velbus 8 Channel Push Button Module

Specification Features:

  • Connection possibility for up to 8 pushbuttons
  • Push button de-bounce: 65ms
  • Connection possibility for a notification LED for each pushbutton
  • Backlit pushbuttons (if LED's are connected)
  • Complete configuration via Velbus PC interface (e.g. VMB1USB)
  • Up to 250 addresses
  • Reaction time for each pushbutton of 0, 1, 2 or 3 seconds
  • All settings are memorized in case of a power failure
  • Comes with connection plug and wiring (wires may not be lengthened)
  • Power supply: 12 ... 18VDC @ 35mA max



Read the fully Illustrated Manual for VMB8PBU

PDF Download

Power Supply

VMB3PS

Case



Dimensions

40 x 30 x 14mm

Weight

75g


Same as VMB8PB but in a different housing, with electronic addressing and a lot of extra functionality (alarms, sunrise-related yearly programs, multi-button operation etc. ...). Additional software to up grade and improve this product is available from the Velleman support section on there website.
Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code   Each
VMB8PBU Velleman Velbus 8 Channel Push Button Module 47.74
