Velleman Velbus

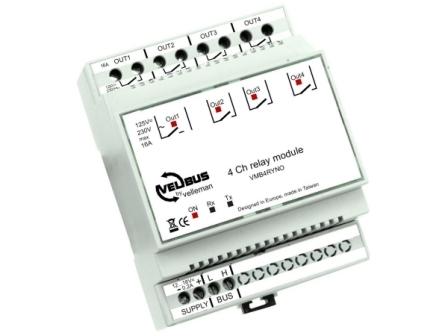

Programmable 4 Channel Relay Module (Volt Free Contacts) |
![Velleman Kits](images/logo%20velleman.jpg) |
![Velleman Velbus Programmable 4 Channel Relay Module](images/vmb4ryno_small.jpg) |
Specification Features: |
- Different operation modes: moment control, on/off control, start/stop timer, staircase lighting timer, non-restartable timer, switch-off delay, switch-on delay, start timer by releasing push button, timer with blinking effect, 2-way timer...
- Free programmable timer functions (using Velbus Link software and USB/RS232 interface (VMB1USB, VMB1RS or VMBRSUSB))
- 250 possible id addresses
- Manual push buttons on board for testing purposes
- Velbus® connection
- 4 Modules wide on the DIN rail
- Firmware upgradeable through the Velbus system
- 4x 16A relay outputs with a maximum total input of 16A
- High inrush (80A) current relays are used
- Required power supply: 14V (12...18VDC allowed)
- Typical power consumption: 150mA max. (25mA standby)
|
Read the fully Illustrated
Manual for
VMB4RYNO |
![PDF Download](images/logo%20pdf.jpg) |
Power Supply |
VMB3PS |
Case |
|
Dimensions |
90 x 71 x 58mm |
Weight |
210g |
|
|
The VMB4RYNO relay module is completely configurable using the free
Velbus-link software and Timers and functions can be set using the
software. There are up to 250 possible address for each module, indication
of output status (On/Off), power and data are displayed on LED's.
Additional software to up grade and improve this product is available
from the Velleman
support
section on there website. |
Velbus Home Automation
System for applications and examples of installations download
introduction
manual |
Order Code |
|
Each |
|
VMB4RYNO |
Velleman Velbus Programmable 4 Channel Relay Module |
159.61 |
|
|
