RGB LED Tape

Specifications:
Supply Voltage	12Vdc
Current	0.5A/m
Power (5m length)	30 W
LED's	150
Colour	RGB
Light Output (lumens)	-
Viewing Angle	150º
LED Spacing	32mm
LED Format	3528
IP Rating	IP54
Dimensions	10 x 3 x 5000mm
Weight	230g

Download Handbook >

Power Supply >

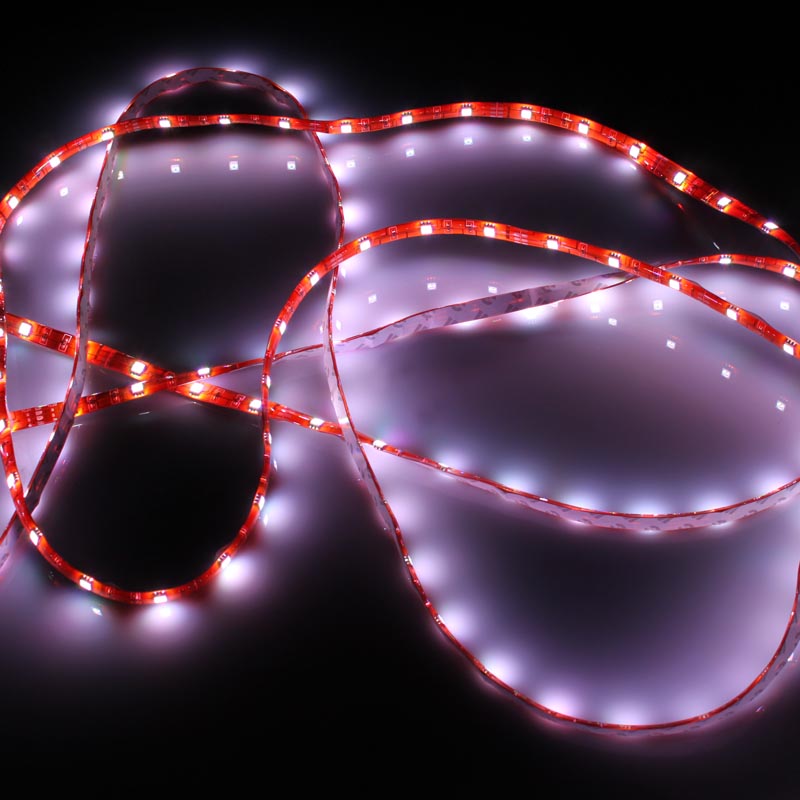

With a total of 150 RGB LED's this LED tape has an IP-54 rated protective resin coating and give a bright constant smooth effect and can be fitted where a continuous linear halo of light is required. This LED strip can be cut at every 100mm (3 LED's).

Order Code		Each
703-170	RGB Flexible LED Tape (3528 LED) - 5m Roll	14.18

Specifications:
Supply Voltage	24Vdc
Current	0.485A/m
Power (5m length)	58.2 W
LED's	840/m
Colour	RGB
Light Output (lumens)	-
Viewing Angle	120º
LED Spacing	0.97mm
LED Format	Snana
Cut Interval	50mm
IP Rating	IP20
Dimensions	10 x 2.2 x 5000mm
Weight	126g

Download Handbook >

Power Supply >

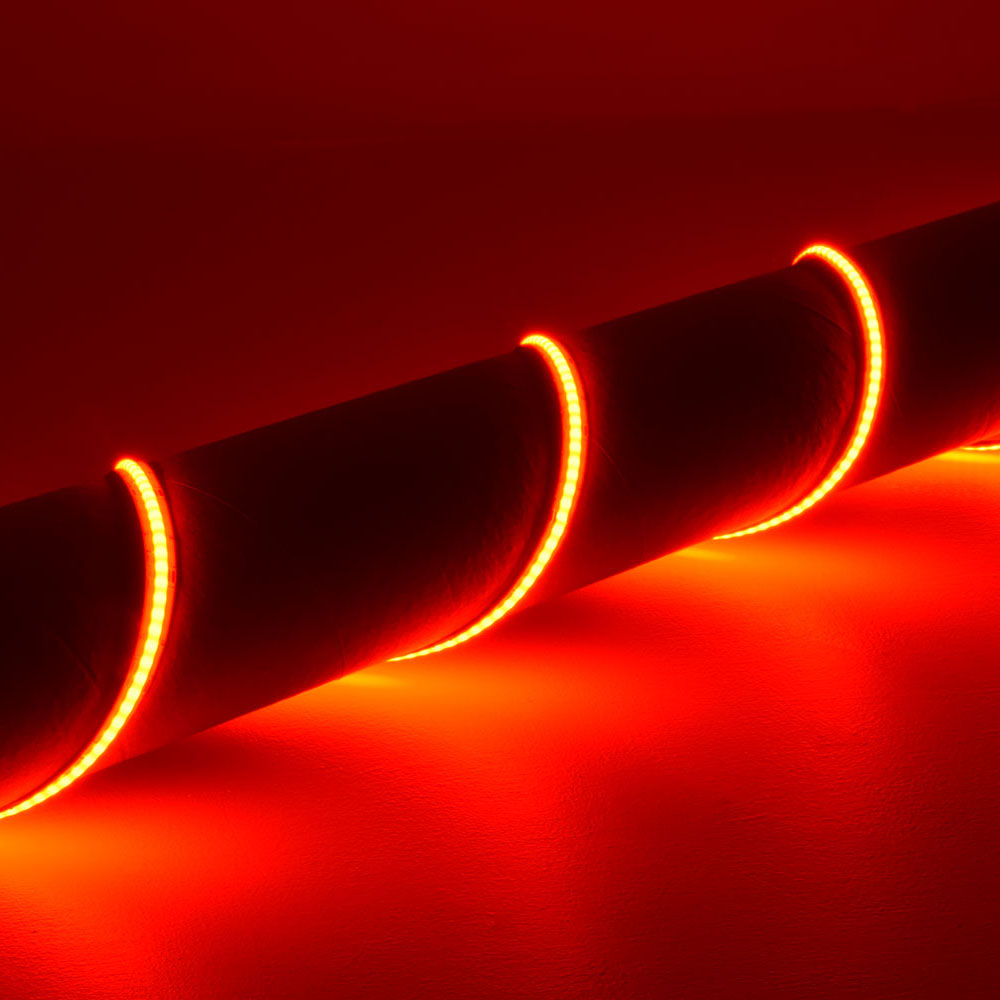

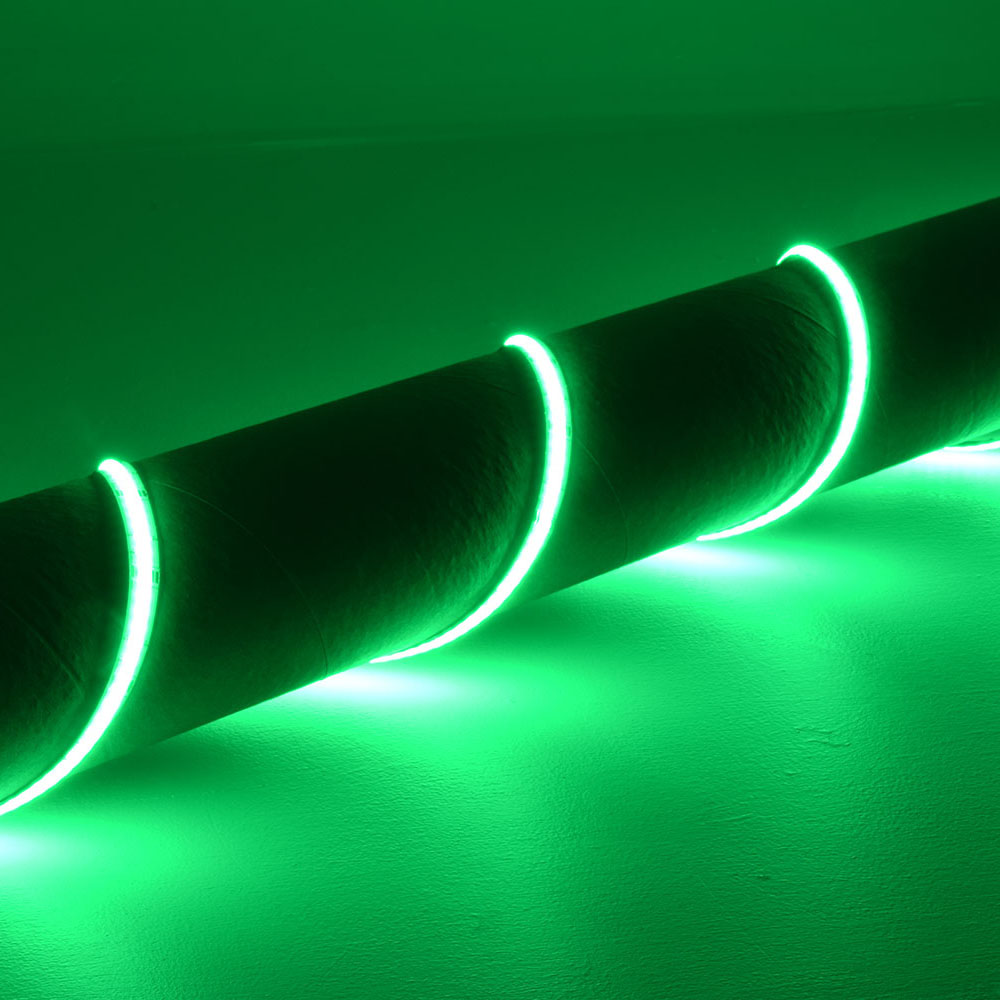

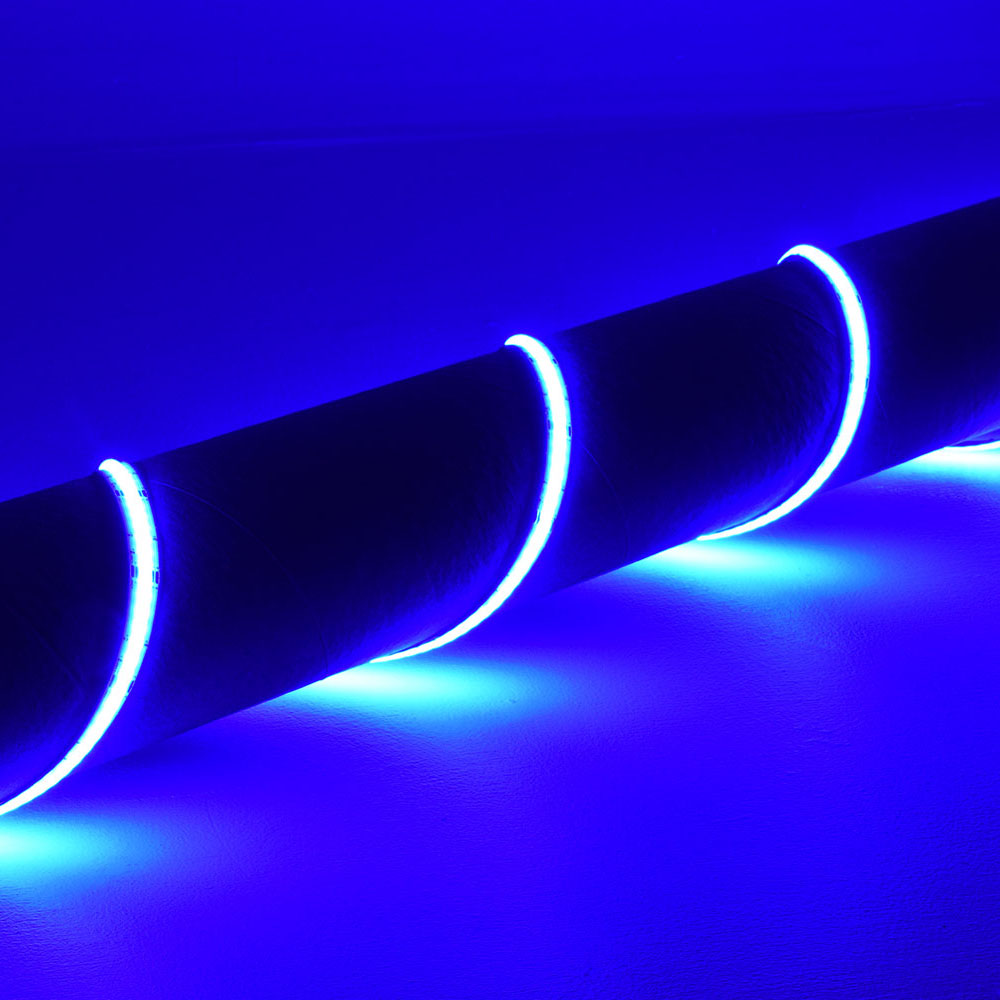

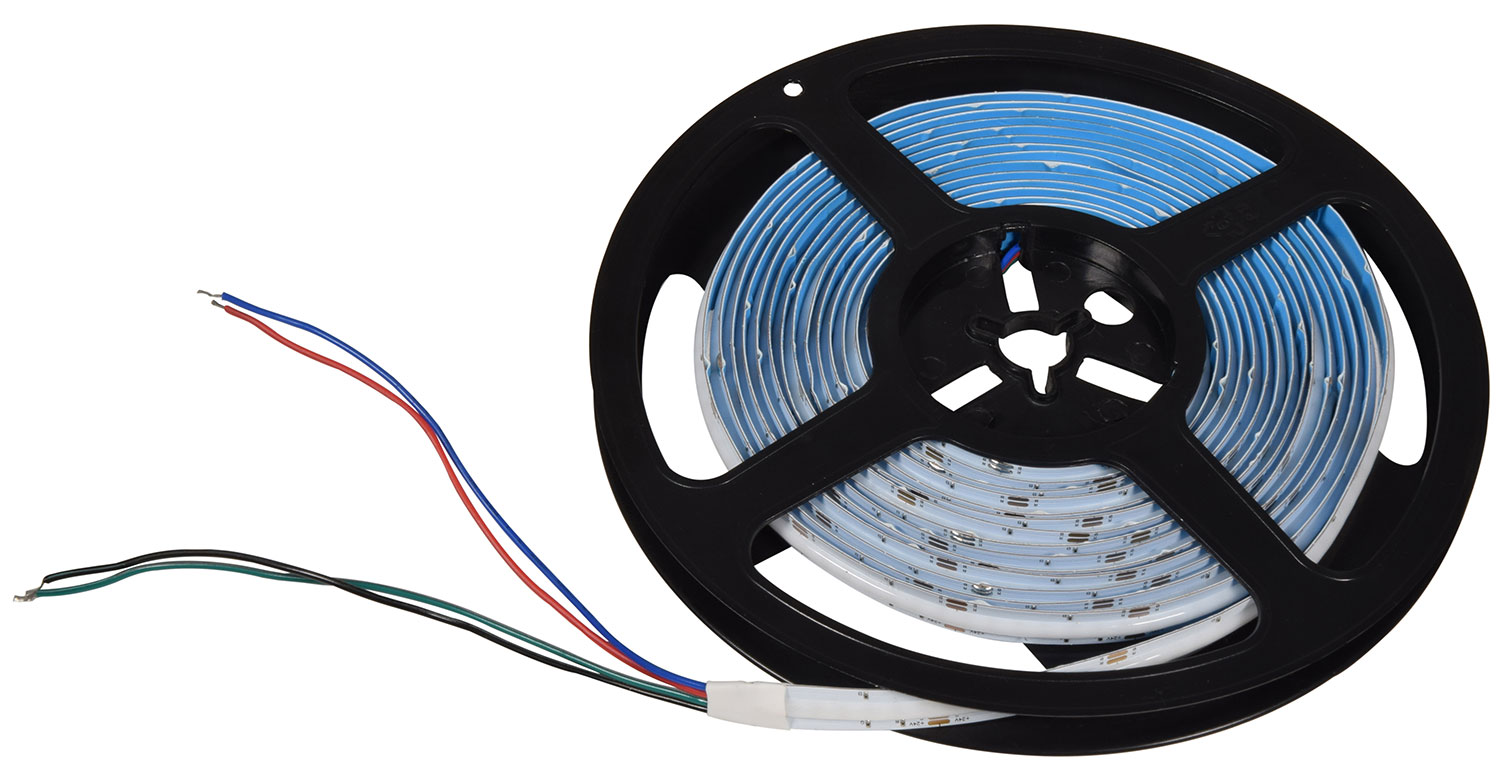

Multi-colour RGB COB LED Strip by Lyyt provides a continuous linear lighting solution. The COB (chip on board) technology consists of 840 tightly packed LEDs per metre. The flexible COB strip is supplied on a 5m reel and can be cut to desired length along the designated cutting points, the strip is equipped with an adhesive backing for easy installation. The 24Vdc COB strip is suitable for a wide variety of applications, such as in hospitality, retail, offices, displays, exhibitions and more. IP20 versions are for indoor use only.
