12V Constant Voltage LED Supplies

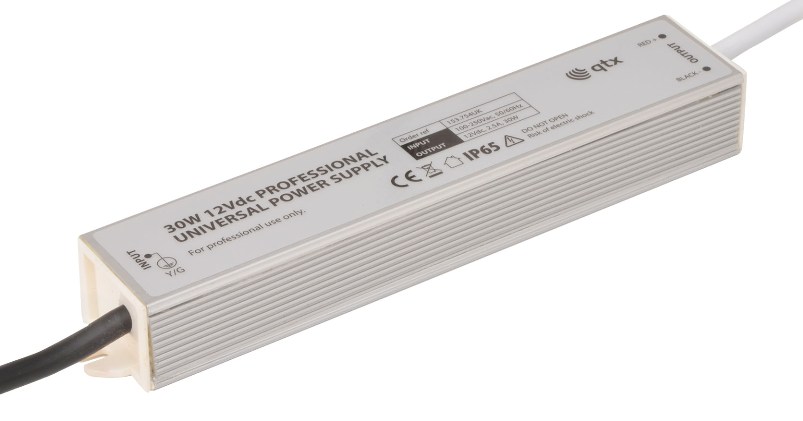

12V 30W Constant Voltage LED Power Supply
Specifications:
Model
Supply Voltage 90-250VAC / 50-60Hz
Output Voltage 12Vdc ± 0.5V
Maximum Input Current mA
Maximum Output Current 2.5A
Total Power 30W
Dimensions 179 x 34 x 23mm
Weight 280g
A compact 12V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP65 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 200mm leads.
Order Code   Each
605-129 12V 30W Constant Voltage LED Power Supply 13.02



45W Constant Voltage LED Power Supply
Specifications:
Model LPS04512R
Supply Voltage 90-250VAC / 50-60Hz
Output Voltage 12Vdc ± 0.5V
Maximum Input Current 410mA
Maximum Output Current 3.75A
Total Power 45W
Dimensions 250 x 30 x 20mm
Weight 350g

A compact 12V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP67 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 200mm leads.

Order Code   Each
605-130 12V 45W Constant Voltage LED Power Supply 18.56



60W Constant Voltage LED Power Supply
Specifications:
Model LPS06012R
Supply Voltage 90-250VAC / 50-60Hz
Output Voltage 12Vdc ± 0.5V
Maximum Input Current 420mA
Maximum Output Current 5A
Total Power 60W
Dimensions 175 x 50 x 67mm
Weight 815g

A compact 12V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP67 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 300mm leads.

Order Code   Each
605-132 12V 60W Constant Voltage LED Power Supply 21.60



80W Constant Voltage LED Power Supply
Specifications:
Model LPS08012R
Supply Voltage 90-250VAC / 50-60Hz
Output Voltage 12Vdc ± 0.5V
Maximum Input Current 560mA
Maximum Output Current 6.7A
Total Power 80W
Dimensions 240 x 67 x 50mm
Weight 1.2kg

A compact 12V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP67 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 300mm leads.

Order Code   Each
605-134 12V 80W Constant Voltage LED Power Supply 37.16



100W Constant Voltage LED Power Supply
Specifications:
Model LPS10012R
Supply Voltage 90-250VAC / 50-60Hz
Output Voltage 12Vdc ± 0.5V
Maximum Input Current 700mA
Maximum Output Current 8.3A
Total Power 100W
Dimensions 240 x 67 x 50mm
Weight 1.2kg

A compact 12V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP67 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 300mm leads.

Order Code   Each
605-136 12V 100W Constant Voltage LED Power Supply 40.53

24V Constant Voltage LED Supplies

24V LED Power Supply
Specifications:
Model LPS10024R
Supply Voltage 90-250VAC / 50-60Hz
Output Voltage 24Vdc ± 0.5V
Maximum Input Current 700mA
Maximum Output Current 4.2A
Total Power 100W
IP Rating IP67
Dimensions 240 x 67 x 50mm
Weight 1.2kg

A compact 24V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP67 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 300mm leads.



Order Code   Each
605-146 24V 100W Constant Voltage Power Supply 41.46



24V LED Tape Power Supply
Specifications:
Model LPS15024R
Supply Voltage 170-250VAC / 50-60Hz
Output Voltage 24Vdc ± 0.5V
Maximum Input Current 1.1A
Maximum Output Current 6.24A
Total Power 150W
IP Rating IP67
Dimensions 228 x 120 x 64mm
Weight 2.4kg

A compact 24V constant voltage DC power supply. Designed for use with our range of flexible LED tape. Housed in a sturdy aluminium body, with IP67 rating. They will operate from a wide range AC supply, have in built thermal, over voltage and short circuit protection. Supplied with approximately 400mm leads.

Order Code   Each
605-148 24V 150W Constant Voltage Power Supply 55.86
