Cebek 4-Channel High Power RF Transmitter

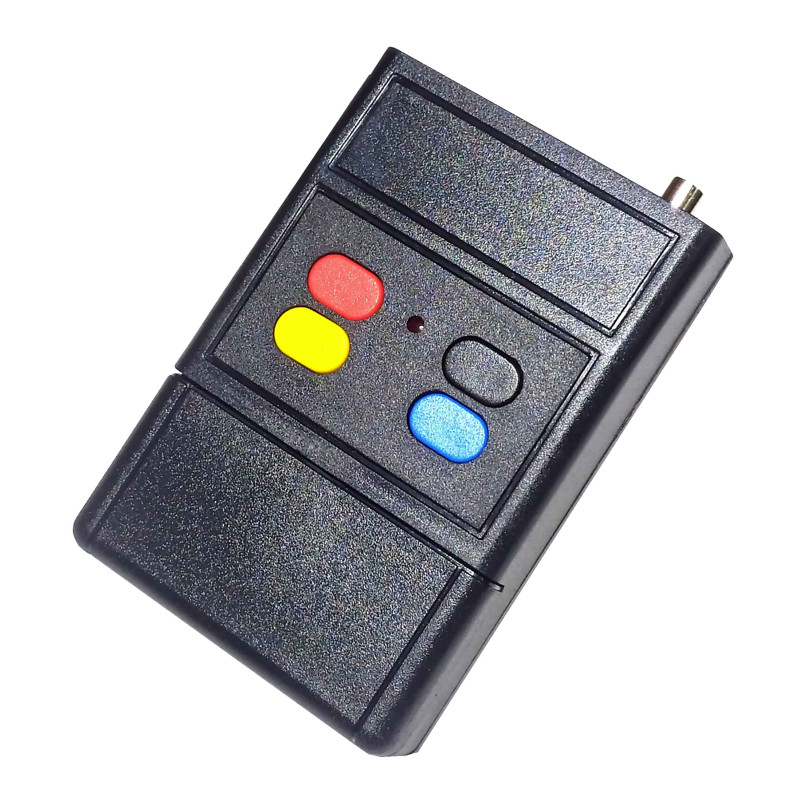

Cebek TL-420 4-Channel High Power RF Transmitter
Specifications:
Reference TL-420
Group 3
Carrier Frequency 433.92 MHz
Number of Channels 4
Range 100m
Consumption 24mA
Power Supply 12VDC 23A Battery
Dimensions 106 x 61 x 24mm
Weight 112g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-420 is a four channel high power transmitter for Cebek RF remote control receivers. Through the Certified radio frequency signal of 433.92 MHz. the transmitter will emit a coded signal to the receivers, allowing it to switch off or on the receivers relay. To personalise remote controls you have more than 13,122 combinations. All transmitter modules are supplied in an hand held enclosure with battery and antenna.
Will Operate with the following Receivers
Single Channel (12-24Vdc) Latching/Momentary TL-310
Two Channel (12-24Vdc) Latching/Momentary & Timed TL-311
Single Channel (230Vac) Latching/Momentary TL-312
Four Channel (12Vdc) Latching/Momentary & Timed TL-422
Eight Channel (12Vdc) Latching/Momentary & Timed TL-423
Two Channel (12-24Vdc) Latching/Momentary & Timed TL-601
Two Channel (230Vac) Latching/Momentary & Timed TL-602

Related Products::
Battery 23A

Order Code   Each
TL-420 Cebek 4-Channel High Power RF Transmitter 61.35
