Cebek Latching Relay



Cebek Start/Stop Automatic Relay

Specifications:
Reference I-9
Relay (1) 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 60 x 40 x 30mm
Weight 134g
Technical Information > Download the Handbook for full specifications and applications
Additional Wiring > Transformer Wiring

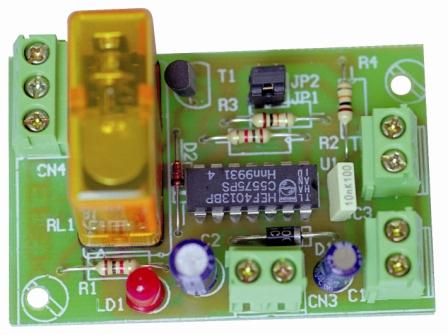

The Cebek I-9 is a single relay which can be operated by switches or contacts. The module can be configured in one of two operating modes.

1/ The relay is 'on' when the switch is pressed and when the same switched is pressed again the relay goes 'off'.

2/ Using two switches the relay is 'on' when the first switch is operated and is only turned 'off' when the second switch is operated. The relay has an LED to indicate the condition of the output.


Related Products::
Power Supply FE-103



Order Code   Each
I-9 Cebek Start/Stop Relay 12.79
