Cebek Temperature Controller -20 to 120



Cebek Temperature Controller -20 to 120

Specifications:
Reference I-86
LED Display 4-Digit 0.5"
Temperature Range -20 to 120C
Hysteresis 0.5
Relay 5A
Consumption 270mA
Power Supply 12VDC
Dimensions 80 x 60 x 23mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

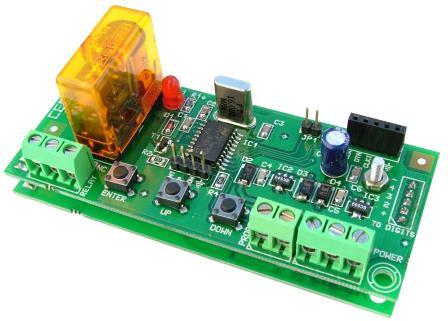

The Cebek I-86 module is a very accurate temperature controller with digital read out and relay control. Thanks to a micro-controller the I-86 thermostat can control temperatures between -20 and 100C. The module has two temperature settings. One for when the relay makes contact the other for when the relay disconnects the load. Thus the thermostat can maintain a temperature between these two values. The operation and temperature adjustment is made with 2 push buttons. Probe and front panel are included.
AC-7 Resistance Probe
Related Products::
Power Supply FE-123
Temperature Probe AC-7


Order Code   Each
I-86 Cebek Temperature Controller -20 to 120 54.98
