Temperature Sensors

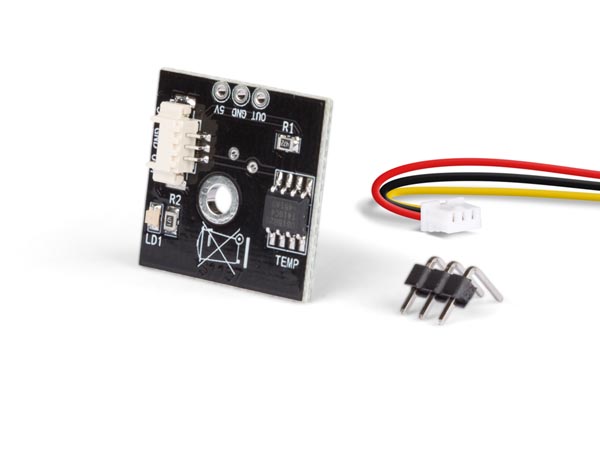

Velleman MM101 Temperature Sensor
Specifications:
ModelMM101
Range-55 C to 125 C
Resolution12 bit
Power Supply5Vdc
Cable Length100mm
Dimensions22 x 22 x 5mm
Weightg
Download Handbook >PDF Download
The MM101 temperature sensor provides a digital output signal to allow easy interfacing to a microcontroller or a microprocessor using the 1-Wire communication protocol. Since communication with the sensor is digital, it can be placed at a distance from the controller circuit without worrying about disturbances and interference from the surrounding environment.
Order Code Each
MM101Velleman Digital Temperature Sensor11.95



Velleman MM11 Temperature Sensor
Specifications:
ModelMM111
Range-50 to 150 C
Accuracy0.4%
Characteristics 21 mV/ C
Power Supply5Vdc
Cable Length100mm
Dimensions22 x 22 x 5mm
Weightg
Download Handbook >PDF Download
The MM111 mini module from Velleman is an analogue sensor  based on MCP6L01T-E / LT operational amplifier by Microchip. The sensor is able to ensure a linear correlation between temperature and output voltage and has a measuring accuracy of 0.4 C only. The voltage output varies according to the temperature measured by following a linear constant value of typically 21 mV / C, starting from a maximum of 5 V at -50 C. At a temperature of zero Celsius degrees the output voltage is slightly higher than 1 volt.
Order Code Each
MM111Velleman Digital Temperature Sensor8.75



AC-3 Resistance Probe
Specifications:
ModelAC-3
Range-10 to 60C
Resistance

Cable Length1500mm
Dimensions40 x 4.5mm
Weight50g
Resistance probe for use with our range of thermostat kits and modules.
Order Code Each
240-010AC-3 Temperature Probe 9.94



AC-7 Resistance Probe
Specifications:
ModelAC-7
Range-20 to 120C
Resistance

Cable Length1500mm
Dimensions30 x 6.5mm
Weight50g
Stainless steel resistance probe for use with our range of thermostat kits and modules.
Order Code Each
240-015AC-7 Temperature Probe10.46



TP02 Stainless Steel Thermocouple Probe
Specifications:
ModelTP02
Range-50 to 300C
Thermocouple

Cable Lengthmm
Dimensionsmm
Weightg
Stainless steel thermocouple ideal for use with liquids.
Order Code Each
240-050TP02 Stainless Steel Thermocouple Probe22.62
