Cebek 12V Power Supply 600mA



Cebek 12V Power Supply 600mA

Specifications:
Reference FE-123

Output 12VDC@600mA
Ripple 5mV
Power Supply 230VAC
Dimensions 72 x 99 x 40mm
Weight 450g
Technical Information > Download the Handbook for full specifications and applications

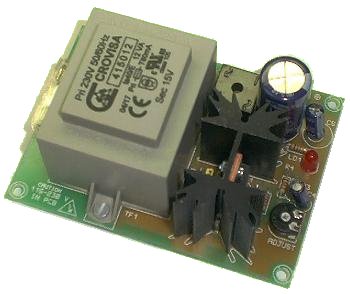

The Cebek FE-123 module is a single rail 12VDC stabilized power supply. It can deliver a maximum of 600mA, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (10 - 15VDC), to allow for long cable runs and supply voltage variations. The FE-123  module has a small enclosed transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-123 Cebek 12V Power Supply 600mA 13.76
