 Cebek Electronic Kits

Cebek 8 Output DTMF Receiver



Cebek 8 Output DTMF Receiver

Specifications:
ReferenceDTMF-3
DTMF Input-29 / 1 dBm
Memory Capacity / Password1 - 10 tones
Memory's life duration100'000 cycles
Relay Load5A@230V
Consumption500mA
Power Supply12VDC
Dimensions107 x 133 x 30mm
Weight250g
Technical Information >Download the Handbook for full specifications and applications

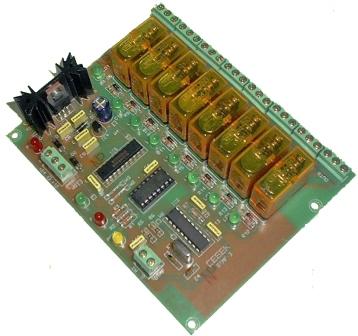

Cebek DTMF-3 is a dual tone multi frequency (DTMF) 8-channel receiver module. It allows you to decode the DTMF tones from 0 to 9, * and #, connecting or disconnecting according to the control signals sent by the transmitter. The corresponding outputs can be configuration in standard, latching or timer mode. It includes password or access code functions.

Related Products::
Power SupplyFE-123
Transmitter ModuleDTMF-1


Order Code Each
DTMF-3Cebek 8 Output DTMF Receiver38.88
