Cebek 4 Output DTMF Receiver



Cebek 4 Output DTMF Receiver

Specifications:
Reference DTMF-2
DTMF Input -29 / 1 dBm
Memory Capacity / Password 1 - 10 tones
Memory's life duration 100'000 cycles
Relay Load 5A@230V
Consumption 240mA
Power Supply 12VDC
Dimensions 107 x 110 x 30mm
Weight 152g
Technical Information > Download the Handbook for full specifications and applications

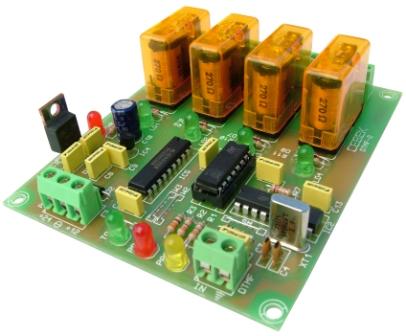

Cebek DTMF-2 is a dual tone multi frequency (DTMF) 4-output receiver module. It allows you to decode the DTMF tones from 0 to 9, * and #, connecting or disconnecting according to the control signals sent by the transmitter. The corresponding outputs can be configuration in standard, latching or timer mode. It includes password or access code functions.

Related Products::
Power Supply FE-123
Transmitter Module DTMF-1


Order Code   Each
DTMF-2 Cebek 4 Output DTMF Receiver 29.92
