Velleman Velbus DIN-Rail TransformerVelleman Kits

Velleman Velbus DIN-Rail Transformer

Specification Features:

  • Rated Input Voltage: 230 Vac
  • Rated Frequency: 50Hz
  • Secondary: 12Vac - 50VA
  • Max Ambient Temperature: 50C
  • Thermal protection: 100C
  • Standard DIN-rail housing: 6 modules
  • Safety standard: EN 61558

Read the fully Illustrated Manual for VMBTR1

PDF Download

Transformer



Case



Dimensions

105 x 93 x 66,5mm

Weight

g

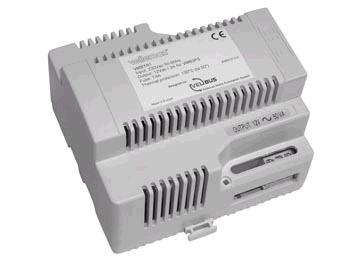

The Velbus VMBTR1 transformer mounts directly on to the DIN-Rail used to secure all the Velbus control modules. This transformer is connected directly to VMB3PS
Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code Each
VMBTR1Velleman Velbus DIN-Rail Transformer40.51





sales@esr.co.uk

Tel: 0191 251 4363

Fax: 0191 252 2296




Place your Order  here Orders accepted subject to our Terms and Conditions

All Prices are in Pounds Sterling and Exclude VAT
