Velleman Velbus Push Button and Timer ModuleVelleman Kits

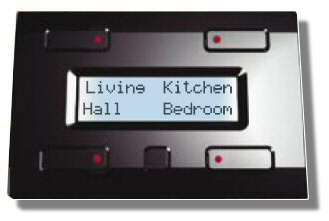

Velbus Push Button and Timer Module

Specification Features:

  • White LED backlight
  • Velbus connection using CANBUS data protocol
  • Each channel can activate up to 255 modules on the bus
  • Power supply: 12V-18Vdc / 30mA
  • 8 channels and 255 Velbus addresses
  • Minimum wall cut-out: 70 x 50 x 20mm
  • Back-up battery option for clock
  • Push button module with display (2 line 16 characters)
  • All 8 channels can have a custom label
  • Instant access of 4 channels, 4 channels on 2e page
  • Connects to the Velbus 4 wire system
  • LED indication for each channel
  • Background LED illumination on the buttons
  • On board Infrared remote control receiver
  • Optional frame available in two colours
  • Settings and labels can also be set using USB or RS232 computer interface module (VMB1USB and VMB1RS)
  • Programmable clock / timer functions, 20 weekly or daily steps (one timer step can control one button or several buttons)
  • Clock can be set as master or slave so that only 1 clock must be set to synchronise all your panels at once
  • Suitable housing VMBFDG or VMBFLG and mounting pattress VMBBOX

Read the fully Illustrated Manual for VMB4PD

PDF Download

Power Supply

VMB3PS





Dimensions

118 x 80 x 30mm

Weight

kg


This unique panel will let you control all of the output modules on the Velbus system, no need to remember the function of each button, just read the label next to it !
The module also features programmable timing functions to automate button press actions at a certain time in the day, there are weekly or daily program steps possible. An infrared receiver is also incorporated. Additional software to up grade and improve this product is available from the Velleman support section on there website.
Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code Each
VMB4PDVelleman Velbus Push Button and Timer Module78.75
