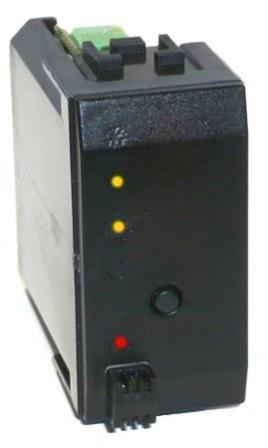

Velleman Velbus Temperature Sensor

Velleman Velbus Temperature Sensor

Specification Features:

  • Operating Temperature range: -10C to 63.5C
  • Hysteresis: 0.5C to 3.5C in 7 steps
  • Night / day or Comfort setting
  • Local button can be locked
  • Sleep function (temporary program override)
  • Cooling or heating option
  • Multiple temperature alarms: anti freeze, anti overheat...
  • Adjustable hysteresis: using controller VMB1TC or PC
  • History: min./max. temperature and total activated time
  • Summer-time pump-lockup protection option: 1min/day
  • Adjustable sleep time: from 1min to 45days
  • Drive up to 7 relay outputs: valve, blower, heater day mode, a/c, pump, temperature alarms high and low
  • Output cycling protection delay: minimum, 1 minute, on/off
  • Programmable thermostat function through VMB1TC temperature controller
  • Suitable housing VMBFDG or VMBFLG and mounting pattress VMBBOX


Read the fully Illustrated Manual for VMB1TS

PDF Download

Power Supply









This sophisticated sensor can only be used with the Velbus system. The sensor can be configured using your PC or using the VMB1TC temperature controller.

The sensor can operate a Velbus relay contact that will drive the heating/air-conditioning system. Once configured, a sensor can work like a simple thermostat. For more advanced functions it is advised to use a Velbus temperature controller VMB1TC.

A local switch or Velbus push button can select day or night temperature, a comfort temperature, or set the sensor in anti-freeze mode. Additional software to up grade and improve this product is available from the Velleman support section on there website.

Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code   Each
VMB1TS Velleman Velbus Temperature Sensor (Black Housing) 33.05
