Velleman Discrete Power Amplifier 200W KitVelleman Kits

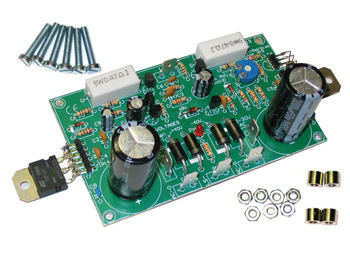

Discrete Power Amplifier 200W Kit

Specification Features:

  • Excellent value for money
  • Fully discrete design using Epitaxial Darlington transistors
  • DC supply circuit on board with LED indication
  • Ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
  • Comes complete with transistor isolators, spacers and bolts
  • Overload and short-circuit protection
  • 200W music power @ 4 ohm load
  • 100Wrms power @ 4 ohm load
  • 70Wrms power @ 8 ohm load
  • Distortion: 0.02% @ 1KHz/10W
  • Damping factor: >800
  • Frequency response: 3Hz to 200KHz (-3dB)
  • Sensitivity: 0.6Vrms
  • Signal to noise ratio: 115dB
  • Power supply: 2 x 25-30Vac / 120VA
  • Heatsink HSVM100 available separately

Read the fully Illustrated Assembly Manual for K8060

PDF Download

Transformer

325-030

Case



Dimensions (PCB)

107x62mm

Weight

0.300kg


The Velleman K8060 is available as a ready built module VM100

Transformer wiring details for K8060 and 325-030

Important Helpful Information >>>Transformer Wiring

Order Code Each
K8060Velleman Discrete Power Amplifier 200W Kit10.95
