Velleman 200W Power Amplifier Module Velleman Kits

200W Power Amplifier Module

Specification Features:

  • Fully discrete design using Epitaxial Darlington transistors
  • DC supply circuit on board with LED indication
  • Ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
  • Comes fully adjusted and tested
  • Overload and short-circuit protection
  • 200W music power @ 4 ohm load
  • 100Wrms power @ 4 ohm load
  • 70Wrms power @ 8 ohm load
  • Distortion: 0.02% @ 1KHz/10W
  • Damping factor: >800
  • Frequency response: 3Hz to 200KHz (-3dB)
  • Sensitivity: 0.6Vrms
  • Signal to noise ratio: 115dB
  • Power supply: 25-30Vac 120VA

Read the fully Illustrated Manual for WMAH100

PDF Download

Transformer

325-030

Case



Dimensions (PCB)

107 x 62mm

Weight

kg

Transformer wiring details for K8060 and 325-030

Important Helpful Information >>>Transformer Wiring

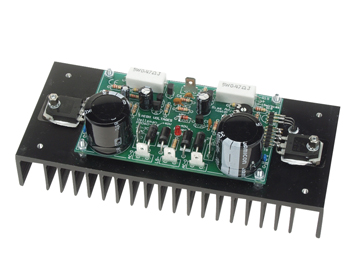

The WMAH100 comes fully assembled and mounted on the heat sink.
Order Code   Each
WMAH100 Whadda 200W Power Amplifier Module 38.65
