Digital Multi-Meters

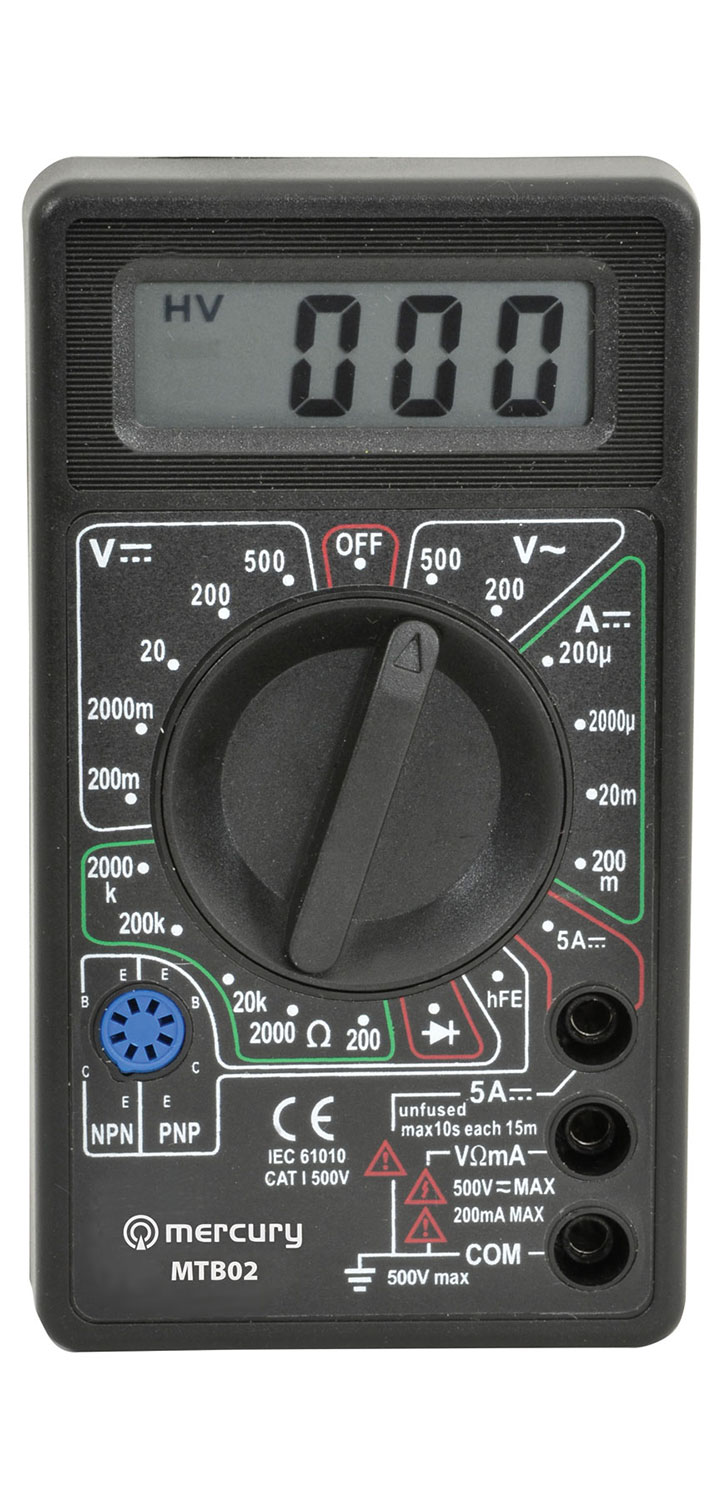

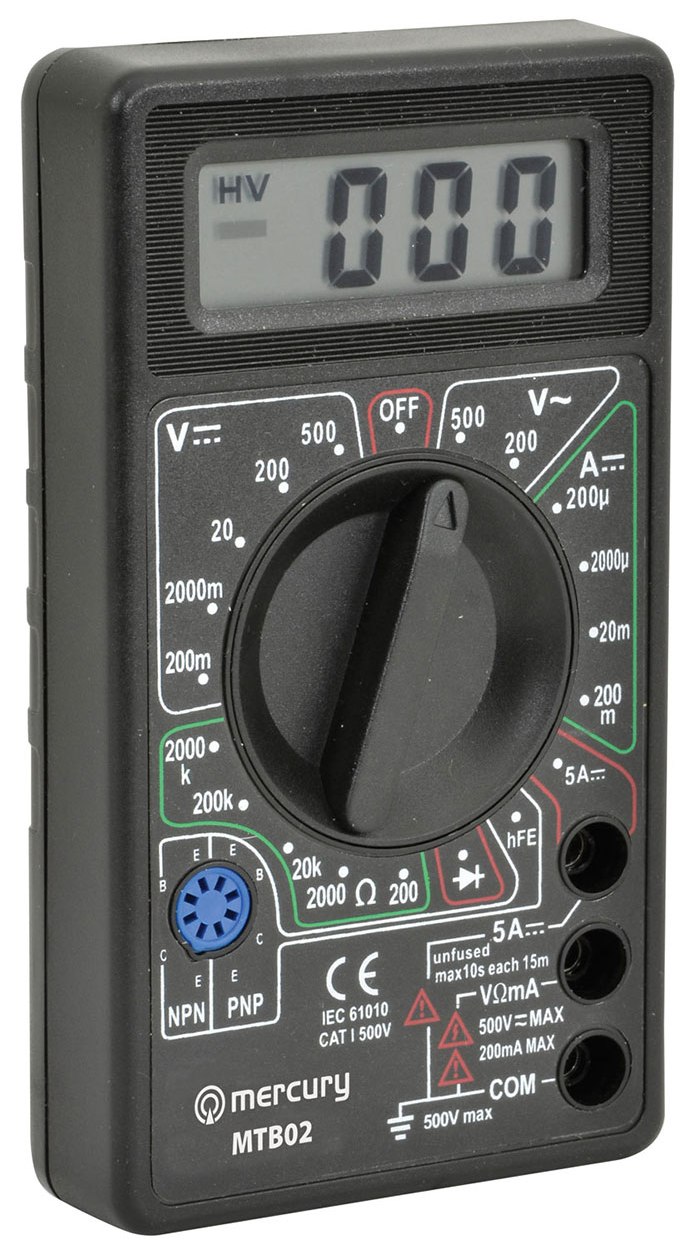

Mercury MTB02 Digital Meter MTB02
Specifications:
Model MTB02
DC Voltage 200mV (0.5%)
  2000mV (0.8%)
  20V (0.8%)
  200V (0.8%)
  500V (1.0%)
AC Voltage 200V (2.0%)
  500V (2.0%)
DC Current 200A (1.8%)
  2000A (1.8%)
  20mA (1.8%)
  200mA (2.0%)
  5A (2.0%)
AC Current No
Resistance 200Ω (1.0%)
  2kΩ (1.0%)
  20kΩ (1.0%)
  200kΩ (1.0%)
  2000kΩ (1.0%)
Capacitance No
Inductance No
Frequency 45 - 450Hz
Temperature No
Transistor (HFE) Yes
Diode Yes
Continuity Buzzer No
Battery Test No
Input Impedance -
Maximum Display 1999
Battery 9V (1 x PP3)
Dimensions 125 x 68 x 24mm
Weight 128g

A Pocket size digital meter. Ideal for basic to intermediate testing requirements by Electronic Hobbyists, Education Establishments and Motorists.


Features:

  • 13mm 3 Digit LCD

  • Overload Protection

  • Supplied with test leads and manual.

This Digital Meter is suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education)
Replacement Test Leads >
Carry Case Available > Carry Bag Available
Download Handbook >
Order Code   Each
121-209 MTB02 Pocket Digital Multimeter 19 Ranges 6.40

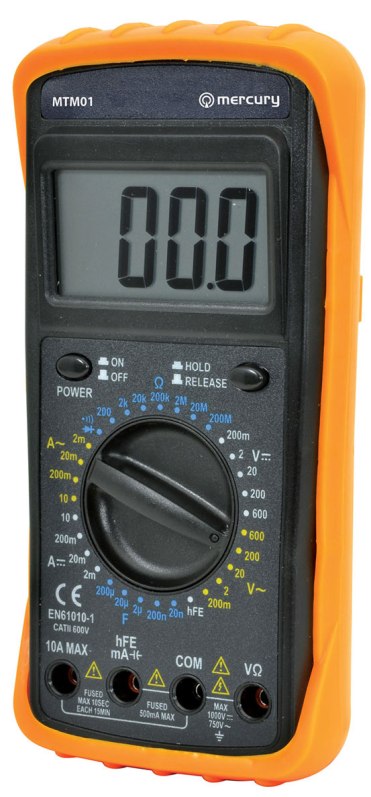

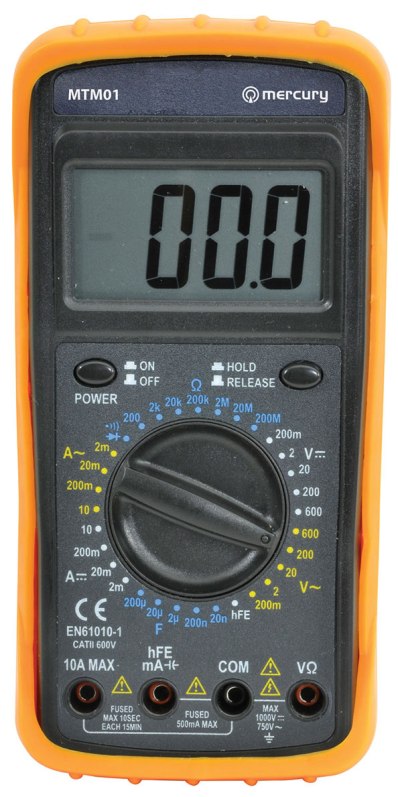

MTM01 Digital Meter MTM01 MultiMeter
Specifications:
Model MTM01
DC Voltage 200mV(0.5%)
  2V (0.8%)
  20V (0.8%)
  200V (0.8%)
  600V (1.0%)
AC Voltage 200V (2.0%)
  500V (2.0%)
DC Current 2mA (1.8%)
  20mA (1.8%)
  200mA (2.0%)
  10A (2.0%)
AC Current 2mA (2.0%)
  20mA (2.0%)
  200mA (2.0%)
  10A (2.5%)
Resistance 200Ω (1.0%)
  2kΩ (1.0%)
  20kΩ (1.0%)
  200kΩ (1.0%)
  2mΩ (1.0%)
  20mΩ (1.0%)
  200mΩ (5.0%)
Capacitance 2nF (4.0%)
  20nF (4.0%)
  200nF (4.0%)
  2F (4.0%)
  20F (4.0%)
Inductance No
Frequency No
Temperature No
Transistor (HFE) No
Diode Yes
Continuity Buzzer
Sounds if resistance
is < 30Ω (2Ω)
Battery Test No
Input Impedance -
Maximum Display 1999
Battery 9V (1 x PP3)
Dimensions 190 x 90 x 33mm
Weight 190g

Pocket size digital meter. Ideal for Education, Hobbyists and Motorists.




Features:

  • Large 3 Digit LCD

  • Automatic Polarity Indicator

  • Continuity Buzzer, Capacitance, Diode and HFE Test.

  • AC and DC voltage up to 600V, resistance up to 2Mohm

  • AC and DC Current up to 10A

  • Data-hold function and backlight

  • Supplied with shrouded test leads and shock proof rubber holster.

This Digital Meter is suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education) A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment)
Replacement Test Leads >
Carry Case Available > Carry Bag Available
Download Handbook >
Order Code   Each
121-110 MTM01 Digital Multimeter 14.60

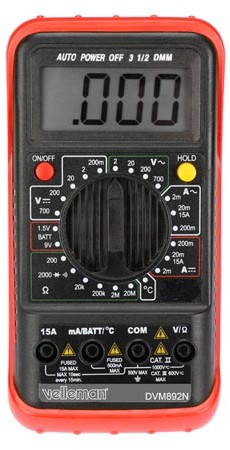

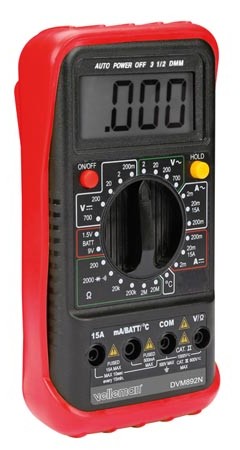

DVM892N Digital Meter
Specifications:
Model DVM892N
DC Voltage 200mV (0.5%)
  2V (0.5%)
  20V (0.5%)
  200V (0.5%)
  700V (0.8%)
AC Voltage 2V (0.8%)
  20V (0.8%)
  200V (0.8%)
  700V (1.2%)
DC Current 2mA (1.2%)
  20mA (1.2%)
  200mA (1.5%)
  15A (2.0%)
AC Current 2mA (1.5%)
  20mA (1.5%)
  200mA (2.0%)
  15A (2.5%)
Resistance 200Ω (1.0%)
  2kΩ (1.0%)
  20kΩ (1.0%)
  200kΩ (1.0%)
  2mΩ (1.0%)
  20mΩ (1.5%)
Capacitance No
Inductance No
Frequency No
Temperature -50 - 150C (1.0%)
  150 - 800C (3.0%)
Transistor No
Diode Yes
Continuity
Sounds if resistance
is < 50Ω (2Ω)
Battery Test 1.5V, 9V
Input Impedance -
Maximum Display 1999
Battery 9V (1 x PP3)
Dimensions 165 x 85 x 37mm
Weight 215g

A small digital meter that will fit neatly into anyone's pocket. Professional 3.5 Digit tester with 8 functions and 24 ranges. Measures AC and DC voltage, DC current, resistance, diode and transistor test, auto zeroing and overload protection.




Features:

  • CAT. II 700 V / CAT. III 600 V

  • DMM with automatic polarity indication and 3 1/2-digit LCD display

  • 24 Ranges

  • LCD display size: 61 x 26 mm

  • Data Hold

  • Auto Power Off

  • DC Current up to 15A

  • Continuity Buzzer, Diode and HFE Test

  • Temperature Probe

  • Supplied with shrouded test leads

Protection:

  • Fused
    • F0.5 A / 600 V 5 x 20mm
    • F15A / 1000 V 5 x 20mm
This Digital Meter is suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education) A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment) A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) single and three phase appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment. <440V (Fuse boxes, Lighting circuits, Ring main, Electric ovens).
Replacement Test Leads >
Carry Case Available > Carry Bag Available
Download Handbook >
Order Code   Each
121-135 DVM892N Digital Meter CAT II 700V- CAT III 600V Temperature and 15A AC/DC 30.99

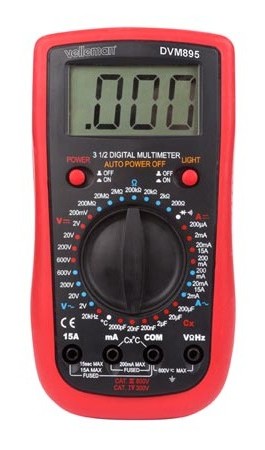

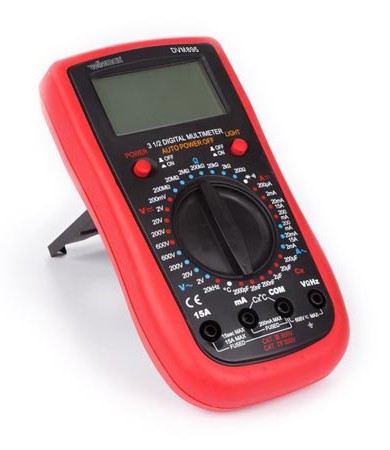

Velleman DVM895 Digital Meter DVM895 Meter
Specifications:
Model DVM895
DC Voltage 200mV (0.5%)
  2V (0.5%)
  20V (0.5%)
  200V (0.5%)
  600V (0.8%)
AC Voltage 2V (0.8%)
  20V (0.8%)
  200V (0.8%)
  600V (1.2%)
DC Current 200A (1.2%)
  2mA (1.2%)
  20mA (1.2%)
  200mA (1.5%)
  15A (2.0%)
AC Current 2mA (1.5%)
  20mA (1.5%)
  200mA (2.0%)
  15A (2.5%)
Resistance 200Ω (1.0%)
  2kΩ (1.0%)
  20kΩ (1.0%)
  200kΩ (1.0%)
  2mΩ (1.0%)
  20mΩ (1.5%)
Capacitance 2000pF (2.5%)
  20nF (2.5%)
  200nF (2.5%)
  2F (2.5%)
  200F (5.0%)
Inductance No
Frequency 20kHz (2.0%)
Temperature -50 - 150C (1.0%)
  150 - 800C (3.0%)
Transistor No
Diode Yes
Continuity
Sounds if resistance
is < 50Ω (2Ω)
Battery Test No
Input Impedance -
Maximum Display 1999
Battery 9V (1 x PP3)
Dimensions 190 x 100 x 40mm
Weight 300g

A Digital meter that will fit neatly into anyone's tool bag. With large LCD display, auto power off, continuity checking with buzzer, diode check, temperature, voltage, resistance and current measurement. Housed in an impact resistant rubber holster with integral stand.




Features:

  • CAT III 600V / CAT IV 300 V
  • automatic polarity indication
  • automatic zero adjustment
  • voltage measurements: 600 VAC and 600 VDC max.
  • current measurements: DC 15 A and AC 15 A max.
  • resistance measurements: 200 MOhm max.
  • capacitance measurements: 200 F max.
  • K-type thermocouple measurements: -50C to 800C
  • frequency measurements: 20 kHz
  • IP20 Rated
  • Pollution degree 2

Protection:

  • Fused
    • F0.5 A / 600 V 5 x 20mm
    • F15A / 1000 V 5 x 20mm
This Digital Meter is suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education) A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment) A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) single and three phase appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment. <440V (Fuse boxes, Lighting circuits, Ring main, Electric ovens). A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and CAT III-environments as well as on the primary supply level. Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.
Replacement Test Leads >
Carry Case Available > Carry Bag Available
Download Handbook >
Order Code   Each
121-155 DVM895 Digital Meter CAT III 600V CAT IV 300V 1999 Counts 39.83



Velleman DVM Meter Multimeter DVM898
Specifications:
Model DM898
DC Voltage 60mV (0.8%)
  600mV (0.5%)
  6V (0.5%)
  60V (0.5%)
  600V (0.8%)
AC Voltage 60mV (1.2%)
  600mV (0.8%)
  6V (1.2%)
  60V (1.2%)
  600V (0.8%)
DC Current 600A (1.2%)
  6000A (1.2%)
  60mA (1.2%)
  600mA (1.2%)
  6A (2.0%)
  15A (2.0%)
AC Current 600A (1.5%)
  6000A (1.5%)
  60mA (1.5%)
  600mA (1.5%)
  6A  (2.5%)
  15A (2.5%)
Resistance 600Ω (1.0%)
  6kΩ (1.0%)
  60kΩ (1.0%)
  600kΩ (1.0%)
  6MΩ (1.0%)
  60MΩ (1.5%)
Capacitance 9.999nF (3.0%)
  99.99nF(2.5%)
  999.9nF (5.0%)
  9.999F (5.0%)
  99.99F (5.0%)
  999.9F (10.0%)
  9.999mF (10.0%)
  99.99mF (10.0%)
Inductance No
Frequency 9.999Hz (0.1%)
  99.99Hz (0.1%)
  999.9Hz (0.1%)
  9.999kHz (0.1%)
  99.99kHz (0.1%)
  999.9kHz (0.1%)
  9.999MHz (0.1%)
Temperature -20 - 1000C (3.0%)
Transistor (HFE) No
Diode Yes
Continuity Buzzer
Sounds if resistance
is < 50Ω (2Ω)
Battery Test No
Input Impedance -
Maximum Display 9999
Battery 9V (1 x PP3)
Dimensions 177 x 92 x 40mmmm
Weight 320g

Professional Digital Multi-tester. With large LCD display, auto power off, continuity checking with buzzer, diode check, temperature, voltage, resistance and current measurement. Housed in an impact resistant rubber holster with integral stand.


Features:

  • CAT III 600V / CAT IV 300V
  • AC TRUE RMS
  • Auto and manual range function
  • Automatic polarity indication
  • Automatic zero adjustment
  • Data Hold
  • Backlight
  • Auto power-off
  • Low Battery indication
  • Voltage measurements: 600 VAC and 600 VDC max.
  • Current measurements: DC 15 A max. and AC 15 A max.
  • Resistance measurements: 60 MOhm max.
  • Capacitance measurements: 99.99 mF max.
  • Frequency measurements: 9.999 MHz max.
  • Temperature measurements: -20C to 1000C (-4F to 1832 F)
  • Test leads included

Protection:

  • Fused
    • F0.5 A / 600 V 5 x 20mm
    • F15A / 1000 V 5 x 20mm
This Digital Meter is suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education) A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment) A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) single and three phase appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment. <440V (Fuse boxes, Lighting circuits, Ring main, Electric ovens). A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and CAT III-environments as well as on the primary supply level. Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.
Replacement Test Leads >
Carry Case Available > Carry Bag Available
Download Handbook >
Order Code   Each
121-145 DVM898 Digital Meter CAT III 600V / CAT IV 300 - 15A - 6000 Counts - True RMS 45.35
