Replacement Multimeter Test Leads

Cheap Multimeter Leads
These Test Leads are suitable for use in the following category.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education)
Specifications:
Model TLM68
Max Voltage 100Vdc
Max Current 2A


Cable Length 100mm
Weight g

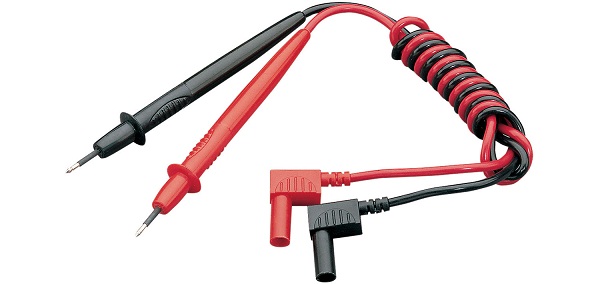

TLM68 Replacement test leads for budget multimeters. Red and black probes suitable for test equipment with 4mm shrouded sockets.
Order Code   Each
126-025 Budget Test Lead Standard 4mm Shrouded Plugs -  Probes 1.75



TLM73 Test Leads with 4mm Plugs
These Test Leads are suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education) A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment) A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) single and three phase appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment. <440V (Fuse boxes, Lighting circuits, Ring main, Electric ovens).
Specifications:
Model TLM73
Max Voltage 600Vdc
Max Current 12A


Cable Length 700mm
Weight 49g
Replacement test leads for multimeters. Red and black 12mm  probes supplied with protection caps, suitable for test equipment with 4mm shrouded 90° sockets.
Order Code   Each
126-123 TLM73 Test Leads with 4mm Plugs 6.91

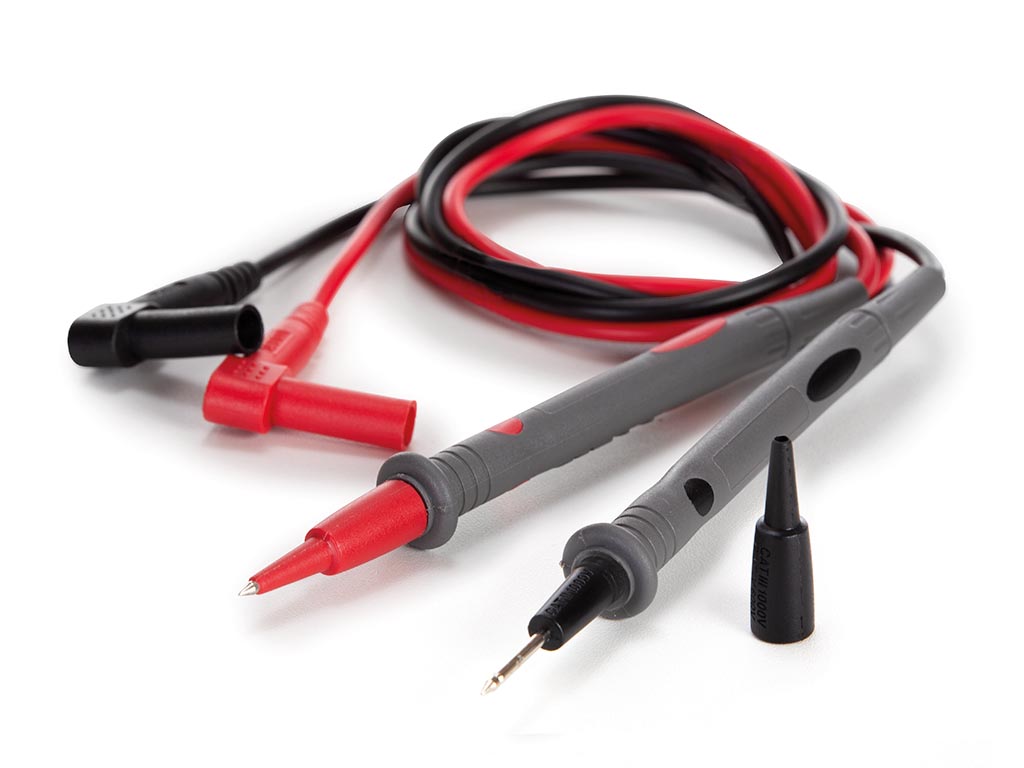

TLM80 Test Leads with 4mm Plugs
These Test Leads are suitable for use in the following categories.
A CAT I rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power. <100V (Battery operated devices, Audio Circuits, Education) A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment) A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) single and three phase appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment. <440V (Fuse boxes, Lighting circuits, Ring main, Electric ovens).
Specifications:
Model TLM72
Max Voltage 600Vdc
Max Current 10A


Cable Length 1000mm
Weight 70g
Replacement test leads for CAT.III and CAT.IV Digital Meters. Red and black probes supplied with protection caps, suitable for test equipment with 4mm shrouded sockets.
Order Code   Each
126-124 TLM80 Test Leads with 4mm Plugs 13.14

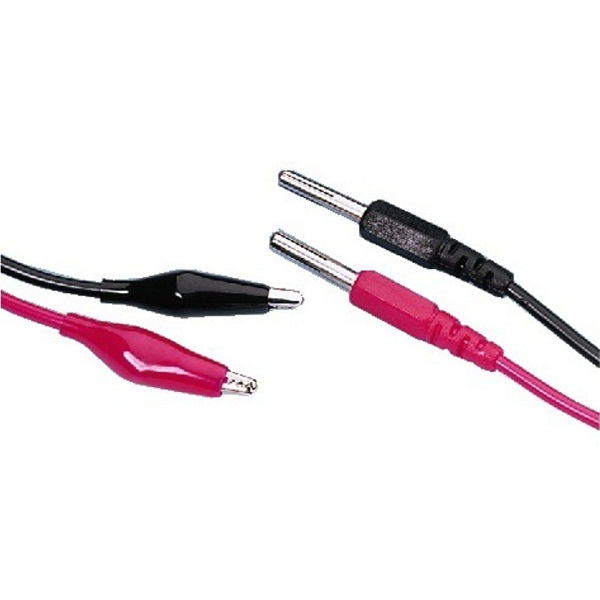

Crocodile Leads
Specifications:
Model CC-313
Max Voltage 1000Vdc
Max Current 10A


Cable Length 1000mm
Weight g
CC-313 replacement Multimeters leads with Red and Black PVC insulated crocodile clips, suitable for test equipment with 4mm sockets.
Order Code   Each
126-130 CC-313 Test Lead Set, with 4mm Plugs - Crocodile clips 4.16

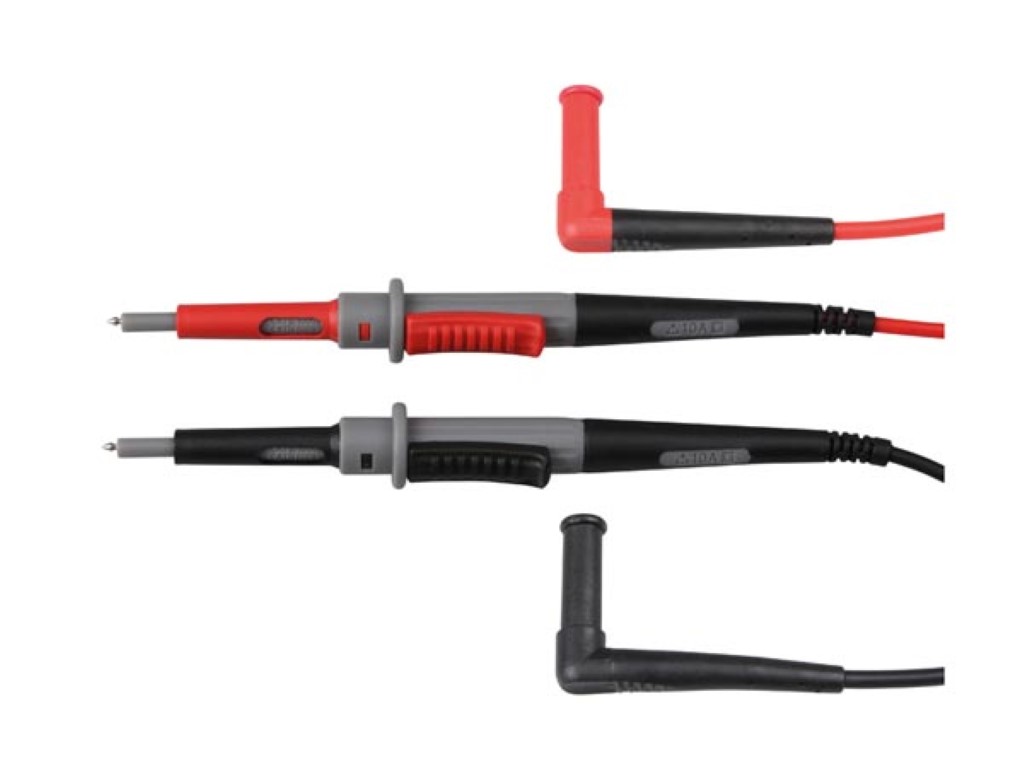

TLM70 Test Lead with 90° Shrouded Plugs - Retractable probes
These Test Leads are suitable for use in the following categories.
  A CAT II-rated meter is suitable for measurements in CAT I-environments, as well as for measurements in single-phase appliances that are connected to the mains by means of a plug. Measurement of normal domestic circuits, provided that the circuit is at least 10m apart from any CAT III- or 20m apart from any CAT IV-environment. < 240V (Household Appliances, Portable Tools, Sound and Lighting Equipment) A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) single and three phase appliances which are at least 10m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment. <440V (Fuse boxes, Lighting circuits, Ring main, Electric ovens). A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and CAT III-environments as well as on the primary supply level. Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.
Specifications:
Model TLM73
Max Voltage 600Vdc
Max Current 10A


Cable Length 1000mm
Weight 49g
Replacement test leads for multimeters. Red and black 12mm  probes supplied with protection caps, suitable for test equipment with 4mm shrouded 90° sockets.
Order Code   Each
126-120 TLM70 Test Lead with 90° Shrouded Plugs - Retractable probes 18.78



Tweezer Style Test Leads
Specifications:
Model TLM12
Max Voltage 24Vdc
Max Current 1A
Tip Size 1.1 x 0.25mm

Cable Length 400mm
Weight g
TLM12 Test leads for multi-testers with 4mm sockets. Tweezers style probes suitable for measuring voltages on SMD components.
Order Code   Each
126-115 TLM12 Test Lead Set for SMD Devices 7.99
