Packs of Electronic Components

Ceramic Capacitors

Contents:
10pF 21 Pieces 2.2nF 14 Pieces
22pF 14 Pieces 4.7nF 14 Pieces
47pF 14 Pieces 10nF 21 Pieces
100pF 21 Pieces 22nF 14 Pieces
220pF 14 Pieces 47nF 14 Pieces
470pF 14 Pieces 100nF 21 Pieces
1nF 21 Pieces 220nF 7 Pieces
A set of 224 ceramic capacitors, includes popular suppression and filter values. All values are supplied in bandolier style packaging.
Order Code   Each
872-000 K/CAP1 224 Piece Ceramic Capacitor Set 11.43



Electrolytic Capacitors

K/CAP2 120 Piece Electrolytic Capacitor Set
Contents:
1µF 50V 15 Pieces 47µF 25V 15 Pieces
2.2µF 50V 15 Pieces 100µF 25V 15 Pieces
4.7µF 50V 15 Pieces 220µF 25V 5 Pieces
10µF 50V 15 Pieces 470µF 25V 5 Pieces
22µF 50V 15 Pieces 1000µF 25V 5 Pieces
A set of 120 radial electrolytic capacitors, includes popular smoothing and timing values. All capacitors are supplied loose inside blister style packaging.
Order Code   Each
805-000 K/CAP2 120 Piece Electrolytic Capacitor Set 7.99



Light Emitting Diodes
Contents:
Red 5mm 5 Pieces
Green 5mm 5 Pieces
Yellow 5mm 5 Pieces
16mm 50K potentiometers 4 Pieces
Key button 4-pin 12 x 12mm 6 Pieces
Round cap for 4-pin key button 9 Pieces
Square cap for 4-pin key button 6 Pieces
0 pin 2.54 mm single row male pin header 2 Pieces
100R, 1K, 4K7, 10K, 47K, 100K, 1M 30 Pieces
Complete set includes 210 resistors, LED's, potentiometers, and push buttons, all neatly packaged in a storage box
Order Code   Each
WPA509 Resistor and LED Accessory Kit 7.60



Light Emitting Diodes (1)
Contents:
Red 5mm 20 Pieces
Green 5mm 15 Pieces
Red 3mm 20 Pieces
Yellow 5mm 10 Pieces
Green 3mm 15 Pieces
Multicoloured LED set which includes Green, Blue, Red, White and UV LED's as well as a colour changing RGB LED's (Common Anode and Common Cathode). Infra Red and Intelligent RGB LED's. Housed in a compartmental plastic case (140 x 70 x 30mm).
Order Code   Each
710-000 K/LED1  A mixed pack of 80 assorted 3mm and 5mm LED's. 7.34



Light Emitting Diodes (2)
Contents:
Red 5mm 20 Pieces
Green 5mm 20 Pieces
Blue 5mm 20 Pieces
White (Cold) 20 Pieces
White (Warm) 20 Pieces
UV 5mm 5 Pieces
RGB (CA) 5 Pieces
RGB (CA) 5 Pieces
RGB Colour Change 5 Pieces
WS2812D-F5 5 Pieces
Infra Red 5mm 5 Pieces
Multicoloured LED set which includes Green, Blue, Red, White and UV LED's as well as a colour changing RGB LED's (Common Anode and Common Cathode). Infra Red and Intelligent RGB LED's. Housed in a compartmental plastic case (140 x 70 x 30mm).
Order Code   Each
WCS101 130 Assorted 5mm LED's Set (130pcs) 7.99



Contents:
LM324 Quad Comparator 4 Pieces
NE555 Timer 4 Pieces
74HC595 8-Bit shift registers 4 Pieces
74HCT125 quadruple bus buffer 4 Pieces
L293D Motor driver H bridge 2 Pieces
ULN2003 Transistor Array 4 Pieces
ULN2803 Transistor Array 4 Pieces


This set includes NE555 timers, LM324 amplifiers, 8-bit shift registers, quadruple bus buffer gates, L293D motor drivers and ULN2003 & ULN2803 darlington transistor arrays. Supplied in a compartment storage box with hinged lid. (140 x 70 x 30mm)
Order Code   Each
WCS102 26 Integrated Circuits 18.33



Diodes

Contents:
1N4148 50 Pieces
1N4007 50 Pieces
1N5408 14 Pieces
6A6 4 Pieces
WO1 (100V, 1.5A) 2 Pieces
A set of general purpose signal and bridge rectifier diodes, including a couple of bridge rectifiers. Suitable for use by hobbyists, schools and colleges.
Order Code   Each
700-000 K/DIODE1 120 Piece Diode and Rectifier Set 6.49



Photo Transistor
Specifications:
Model C-2772
VR Max 32V
Radiant Power 100mW
Current 6mA
Dimensions 5mmØ
Weight g

General purpose 5mm phototransistor. Can be used with C-7468 parabolic reflector to increase light concentration.

(Supplied as a pack of 10).
Order Code   Each
721-520 5mm Infrared Receiver (Pack of 10) 5.49



Resistors - E12

610 Assorted E12 series ¼ watt Resistors
Specifications:
Power Rating ¼ Watt
Tolerance 5%
Operating Temperature -55ºC to +155ºC
Working Voltage 250V
Contents:
10R 100R 1K0 10K 100K 1M0
12R 120R 1K2 12K 120K
15R 150R 1K5 15K 150K
18R 180R 1K8 18K 180K
22R 220R 2K2 22K 220K
27R 270R 2K7 27K 270K
33R 330R 3K3 33K 330K
39R 390R 3K9 39K 390K
47R 470R 4K7 47K 470K
56R 560R 5K6 56K 560K
68R 680R 6K8 68K 680K
82R 820R 8K2 82K 820K
A pack of high-quality carbon film resistors, each value is supplied on a short bandolier. This pack contains 10 resistors of 61 different values in the E12 series. 10Ω - 1MΩ
Order Code   Each
906-001 K/RES-E12 610 Assorted E12 series ¼ watt Resistors 7.99



Resistors - E3

Specifications:
Power Rating ¼ Watt
Tolerance 5%
Operating Temperature -55ºC to +155ºC
Working Voltage 250V
Contents:
10R 100R 1K0 10K 100K 1M0
22R 220R 2K2 22K 220K
47R 470R 4K7 47K 470K
A pack of high-quality carbon film resistors, each value is supplied on a short bandolier. This pack contains 30 resistors of 16 different values in the E3 series. 10Ω - 1MΩ
Order Code   Each
906-008 K/RES-E3 480 Assorted E3 series ¼ watt Resistors 5.60



Pre-Set Potentiometers

Sub-miniature Horizontal Trimmer Set Line Drawing
Contents:
470R 5 Pieces
1k 5 Pieces
10k 5 Pieces
47k 5 Pieces
100k 5 Pieces
470k 5 Pieces
1M 5 Pieces
A pack of 35 horizontal sub miniature pre set potentiometers
Order Code   Each
992-000 35 Sub-miniature Horizontal Trimmers 8.41

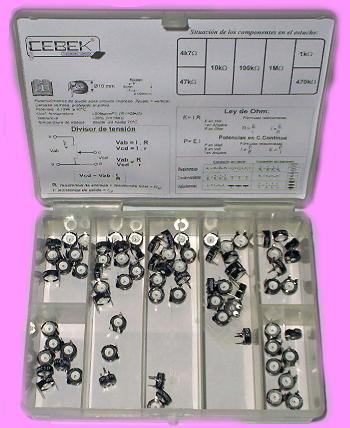

77 Assorted horizontal pre-set potentiometers
Contents:
1k 8 Pieces
4k7 8 Pieces
10k 15 Pieces
47k 8 Pieces
100k 15 Pieces
470k 8 Pieces
1M 15 Pieces
A pack of 77 horizontal pre set potentiometers, supplied in a 7 compartment storage box with hinged lid.
Order Code   Each
C-9448 77 Assorted horizontal pre-set potentiometers 10.36



Transistors

Contents:
BC547B NPN 28 Pieces
BC557B PNP 28 Pieces
BC337 NPN 12 Pieces
BC327 PNP 12 Pieces
BC517 NPN 6 Pieces
BC516 PNP 6 Pieces
BD139 NPN 4 Pieces
BD140 PNP 4 Pieces
100 of the most popular general purpose signal transistors, suitable for use as a starter kit for the electronic enthusiast or for use by schools or colleges.
Order Code   Each
BC000 K/TRANS1 100 Assorted Transistors 9.75



Contents:
IRFZ44N N-Channel 1 Piece
RF540N N-Channel 1 Piece
IRFP460 N-Channel 1 Piece
FQP47P06 P-Channel 1 Piece
IRL540 Logic Level 1 Piece
IRLZ44 Logic Level 1 Piece
NTP60N06L Logic Level 1 Piece
FQP27P06 Logic Level 1 Piece
NDP6020P Logic Level 1 Piece
IGB 17A Bipolar 1 Piece
SN74LVC245 octal bus transceiver with 3-State output 1 Piece
Switch and amplify your electronic signals in high power applications with this set! It includes the IRFZ44N, IRF540N, IRFP460, FQP47P06, IRL540, IRLZ44, NTP60N06L, FQP27P06, a fast speed insulated gate bipolar transistor IGBT 17A and an octal bus transceiver with 3-State output. Supplied in a compartment storage box with hinged lid. (140 x 70 x 30mm)
Order Code   Each
WCS103 11 Piece MOSFET Set 18.90



Contents:
KSA1015Y PNP 10 Pieces
KSC945 YBU NPN 10 Pieces
KSC1815 NPN 10 Pieces
SS8050 NPN 10 Pieces
SS8550 PNP 10 Pieces
SS9012 PNP 10 Pieces
SS9013 NPN 10 Pieces
SS9014 NPN 10 Pieces
SS9015 PNP 10 Pieces
SS9018 NPN 10 Pieces
2N2222 NPN 10 Pieces
2N3904 NPN 10 Pieces
2N3906 PNP 10 Pieces
2N5401 PNP 10 Pieces
2N5551 BJT 10 Pieces
100K Trimmer 10 Pieces
Amplify or switch electronic signals and electrical power with these transistors. Also included are potentiometers which you can use as adjustable voltage dividers. Supplied in a compartment storage box with hinged lid. (200 x 140 x 48mm)
Order Code   Each
WCS104 160 Transistor & Trimmer Set 14.74



Voltage Regulators

Contents:
7805 3 Pieces
7812 3 Pieces
7912 3 Pieces
7815 3 Pieces
7824 3 Pieces
33LPE3 3 Pieces
LM317T 3 Pieces
1000µF / 50V Caps 10 Pieces
470µF / 50V Caps 10 Pieces
10µF / 50V Caps 10 Pieces
100nF Ceramic Disc 10 Pieces
10R ¼ Watt Resistord 10 Pieces
330R ¼ Watt Resistors 10 Pieces
470R Trimmers 10 Pieces
1N4007 Diodes 10 Pieces
TO220 Heatsink 25x15x10mm 4 Pieces
TO220 Heatsink 35x19x35mm 2 Pieces
TO220 Heatsink 15x10x20mm 2 Pieces
Screws and mica washers
Starter set to build your own power supplies; Heatsinks, electrolytic capacitors, diodes, screws and resistors are all included. Housed in a compartmental plastic case (200 x 140 x 48mm).
Order Code   Each
WCS100 Voltage Regulator & Parts Set (+110pcs) 19.94




A selection of PCB mounting push button switches, with and without LED indication. Also included are 5 panel mounted round push switches. All supplied in a handy storage case 200 x 140 48mm.
Order Code   Each
VCS300 82 Assorted PCB Push Button & Switch Set 24.80



Assorted Push Switches

Contents:
Green Tactile 12Vdc 50mA 5 Pieces
Red Tactile 12Vdc 50mA 5 Pieces
Black Tactile 12Vdc 50mA 5 Pieces
Yellow Tactile 12Vdc 50mA 5 Pieces
Blue Tactile 12Vdc 50mA 5 Pieces
White 12Vdc 50mA 5 Pieces
6mm PCB 4.3mm 12Vdc 50mA 30 Pieces
6mm PCB 9.5mm 12Vdc 50mA 10 Pieces
Round Panel Mount 30Vdc 400mA 3 Pieces
Round Panel Mount with LED 30Vdc 400mA 2 Pieces
Digitast Push Button 24Vdc 5mA 3 Pieces
Digitast Push Button with LED 24Vdc 5mA 2 Pieces
Digitast Push Button with two LED's 24Vdc 5mA 2 Pieces
A selection of low voltage (30V) PCB/Breadboard mounting push button switches, with and without LED indication. Also included are 5 panel mounted round push switches. All supplied in a handy storage case
Order Code   Each
WCS300 82 Assorted PCB Push Button & Switch Set 24.80
