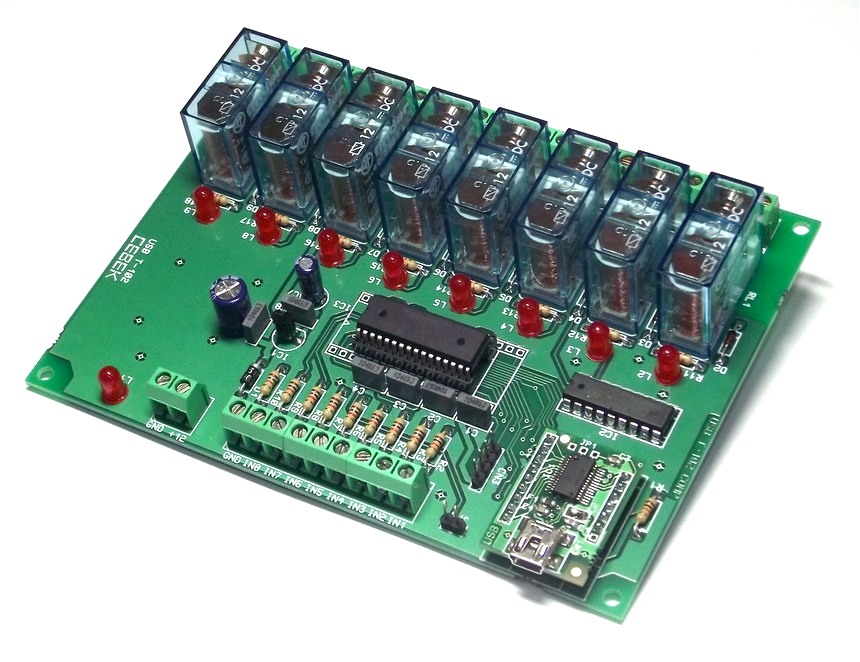

Cebek USB.T102 Computer Controlled 8-Channel Relay Module

Cebek 8-Channel USB Relay Interface
Specifications:
Reference USB.T102
Microcontroller STM8S105K
USB FT232RL



Relay Contacts 230VAC 3Amp
Power Supply 12VDC 460mA
Dimensions 143 x 107 x 27mm
Weight 292g
Technical Information > Download the Handbook for full specifications and applications
Watch a Movie Clip >
Cebek USB.T102 is a computer controlled interface which allow you to control eight relays from your PC. It is designed to be connected to a USB port on your computer, allowing you to remotely control eight independent single pole relays. The relays can be configured to operate in either momentary action or latching according to your requirements. The USB.T102 also has LED's fitted to indicate the operation of the relays.

Related Products::
Power Supply FE-123

Downloads and Documentation:

Driver FTDI:

Link to the official website of FTDI, www.ftdichip.com. Provide users chips a simple procedure for installing the drivers for FTDI devices used under Windows. Download the driver for the OS installed on your PC.

Driver Manual FTDI:

Manual installation FTDI USB driver for operation with Cebek Interface circuits. Description detailed step by step in a Windows 7. The same procedure on different operating systems Microsoft Windows.

Download the Handbook for full specifications and applications

Program Cebek USB.T102:

The USB interface controller is an electronic circuit designed to be connected to a USB port on your computer, allowing you to remotely control the output voltage to regulate a 12Vdc lamp



Order Code   Each
USB.T-102 Cebek Computer Controlled 8-Channel Relay Interface 64.64
