Cebek Digital Message Recorder with 5W Amplifier


Cebek Digital Message Recorder with 5W Amplifier
Specifications:
Reference TR-4
Rated Power (RMS) 5W

Input Electret Microphone
Output Impedance 4 - 8Ω
Consumption 350mA
Power Supply 12VDC
Dimensions 72 x 65 x 28mm
Weight 49g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7564 >

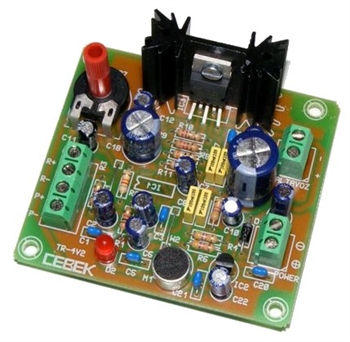

Cebek TR-4 is an electronic sound recorder-player. It allows you to store any music, conversation or sound effect of up to 16 seconds as maximum time. The recording remains in memory even after disconnection of the power supply. The TR-4 incorporates a 5W RMS power stage, automatic control gain control circuit, (AGC) as well as protection against incorrect connection of the power supply. It includes indication LED, microphone, and connection terminals.

Related Products::




Order Code   Each
TR-4 Cebek Digital Message Recorder with 5W Amplifier 28.56
