Cebek Opto Coupled 24v Module with a SPDT Relay



Cebek Opto-Coupled 24v Interface with a SPDT Relay

Specifications:
Reference T-54
Input 3 - 24VDC (Minimum 5mA)
Relay Output SPDT 3A
Consumption 30mA
Power Supply 24VDC
Dimensions 31 x 72 x 30mm
Weight g
Technical Information > Download the Handbook for full specifications and applications

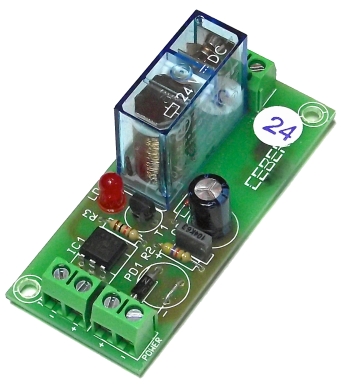

The Cebek T-54 is a an opto coupled interface with a single pole double throw relay output. The module is powered from a 24 volt supply and the relay is energised when a separate voltage of between 3 and 24 volts is applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::
Power Supply FE-115



Order Code   Each
T-54 Cebek Opto-Coupled 24v Module with SPDT Relay Output 14.30
