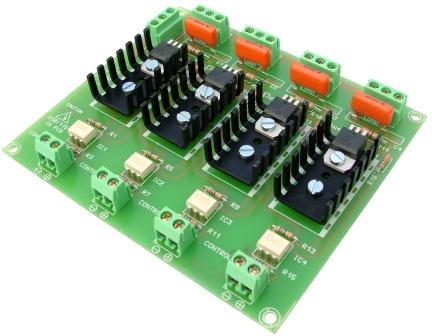

Cebek Opto-Coupled Module with 4 Transistors


Cebek Opto-Coupled Module with 4 Transistors
Specifications:
Reference T-2
Input 3 - 24VDC
Transistors Output (4) 2A@45VDC
Consumption 20mA
Power Supply 12VDC
Dimensions 107 x 122 x 20 mm
Weight 134g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7589 >
The Cebek T-2 is a an opto-coupled four output interface with four mosfet transistors. When an voltage of between 3 and 24 is applied to the input the corresponding transistor will conduct It allows for easy interface between CMOS and TTL signals. An LED gives visual indication of the output.

Related Products::
Power Supply FE-2


Order Code   Each
T-2 Cebek Opto-Coupled Module with 4 Transistors 27.50
