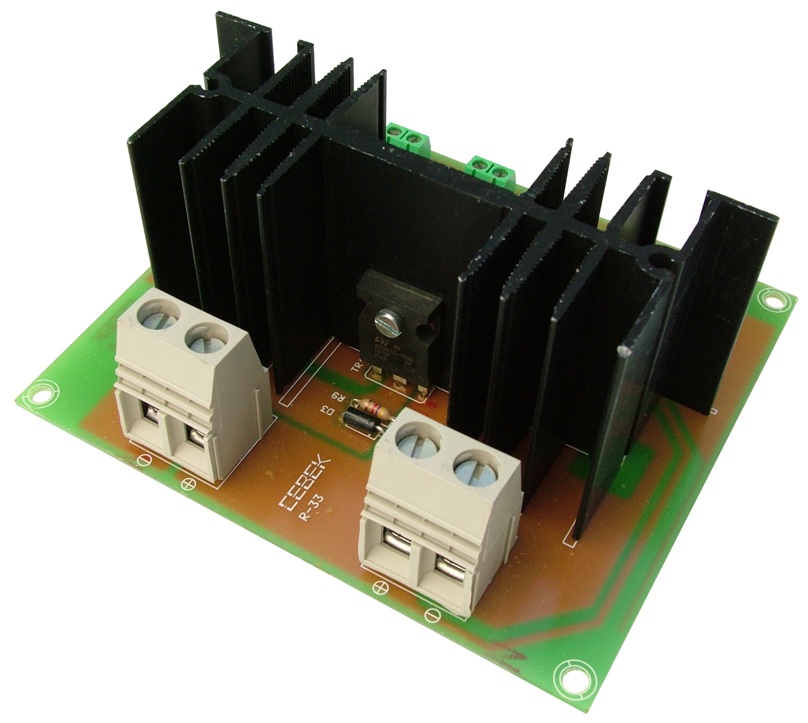

Cebek Push Button 25A DC Regulator



Cebek Push Button 25A DC Regulator

Specifications:
Reference R-33


Maximum Load 25A
Power Supply 8-30VDC
Dimensions 12 x 106 x 55mm
Weight 218g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7589 >
Cebek R-33 module is a push button DC regulator. By pressing one or the other push buttons allows an ascending or descending progressive adjustment of the load. It allows you to select the operating mode between one or two push buttons as well as to adjust the activation deactivation of the ramp. This module will not control inductive loads.

Related Products::




Order Code   Each
R-33 Cebek Push Button 25A DC Regulator 47.81
