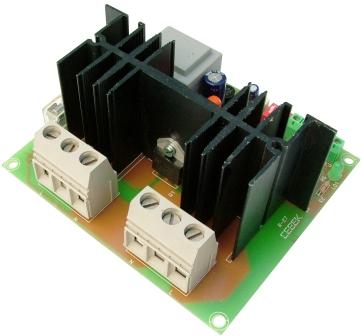

Cebek DC Controlled 5000W AC Dimmer



Cebek DC Controlled 5000W AC Dimmer

Specifications:
Reference R-27

Maximum Load 5000W
Minimum Load 50W
Power Supply 230VAC
Dimensions 121 x 116 x 55mm.
Weight 319g
Technical Information > Download the Handbook for full specifications and applications
Cebek R-27 module is a dimmer controlled by applying a 0 - 10VDC voltage on to the control terminals. The Cebek R-27 module has the facility to select whether the load is on at 10V or off for a 10V signal. The module will also work using a remotely wired 10kΩ potentiometer. (Not Supplied). This module will not control inductive loads.

Related Products::




Order Code   Each
R-27 Cebek DC Controlled 5000W AC Dimmer 52.90
