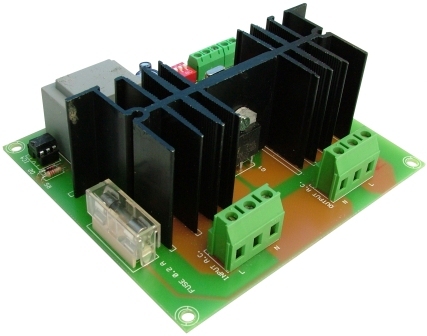

Cebek DC Controlled 2500W AC Dimmer



Cebek DC Controlled 2500W AC Dimmer

Specifications:
Reference R-26

Maximum Load 2500W
Minimum Load 50W
Power Supply 230VAC
Dimensions 121 x 116 x 45mm.
Weight 300g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7589 >
Cebek R-26 module is a dimmer controlled by applying a 0 - 10VDC voltage on to the control terminals. The Cebek R-26 module has the facility to select whether the load is on at 10V or off for a 10V signal. The module will also work using a remotely wired 10kΩ potentiometer. (Not Supplied). This module will not control inductive loads.

Related Products::




Order Code   Each
R-26 Cebek DC Controlled 2500W AC Dimmer 43.04
